Properties

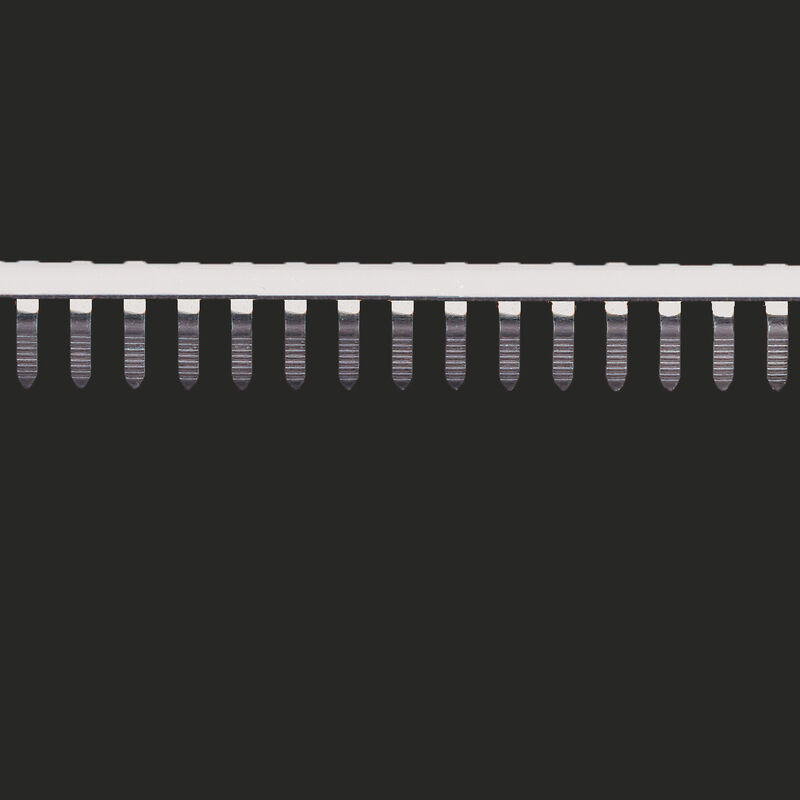

| Version | Cross-connector (terminal), when screwed in, black, 17.5 A, Number of poles: 50, Pitch in mm (P): 6.20, Insulated: Yes, Width: 4.2 mm |
| Order No. | 1635120000 |
| Type | VQB 1.5/50 SW |
| GTIN (EAN) | 4008190262761 |
| Qty. | 5 items |
| Depth | 12.85 mm |
| Depth (inches) | 0.506 inch |
| Height | 306.1 mm |
| Height (inches) | 12.051 inch |
| Width | 4.2 mm |
| Width (inches) | 0.165 inch |
| Net weight | 17 g |
| Storage temperature | -25 °C...55 °C |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Colour | black |
| Version | for cross-connection link |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Pitch in mm (P) | 6.2 mm |
| Installation advice | Direct mounting |
| Number of poles | 50 |
| Rated current | 17.5 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62439) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1635120000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1635120000) |
| User Documentation |
[Beipackzettel_VQB1.5.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35712)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
