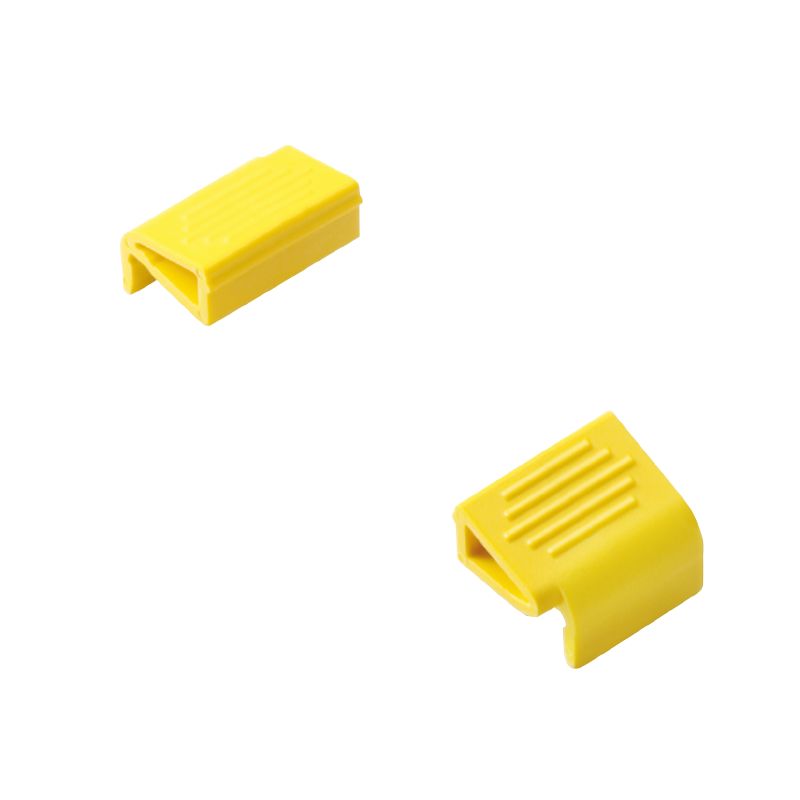

VSPC LOCKING CLIP

Fastening element, Latches

Item No. 1317340000

Properties

General ordering data

Version	Fastening element, Latches
Order No.	1317340000
Type	VSPC LOCKING CLIP
GTIN (EAN)	4050118121179
Qty.	100 items

Dimensions and weights

Depth	7.5 mm
Depth (inches)	0.295 inch
Height	13 mm
Height (inches)	0.512 inch
Width	17 mm
Width (inches)	0.669 inch
Net weight	1.34 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General data

Colour	yellow
Design	miscellaneous
Optical function display	No
Protection degree	IP20
Segment	Measurement - Monitoring - Setting
UL 94 flammability rating	V-0
Version	Latches

Connection data

Type of connection

Plug / socket

General data

Protection degree	IP20
Colour	yellow

Ratings IECEx/ATEX/cUL

cUL certificate

[cUL Certificate](pdf/VSPC.PDF)

Guarantee

Time interval

5 years

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61165)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1317340000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1317340000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000943
ETIM 7.0	EC000943
ETIM 8.0	EC000943
ETIM 9.0	EC000943
ECLASS 9.0	27-13-08-07
ECLASS 9.1	27-13-08-07
ECLASS 10.0	27-13-08-07
ECLASS 11.0	27-13-08-07
ECLASS 12.0	27-17-90-90
ECLASS 13.0	27-17-90-90
ECLASS 14.0	27-17-90-90

Approvals

ROHS

Conform
