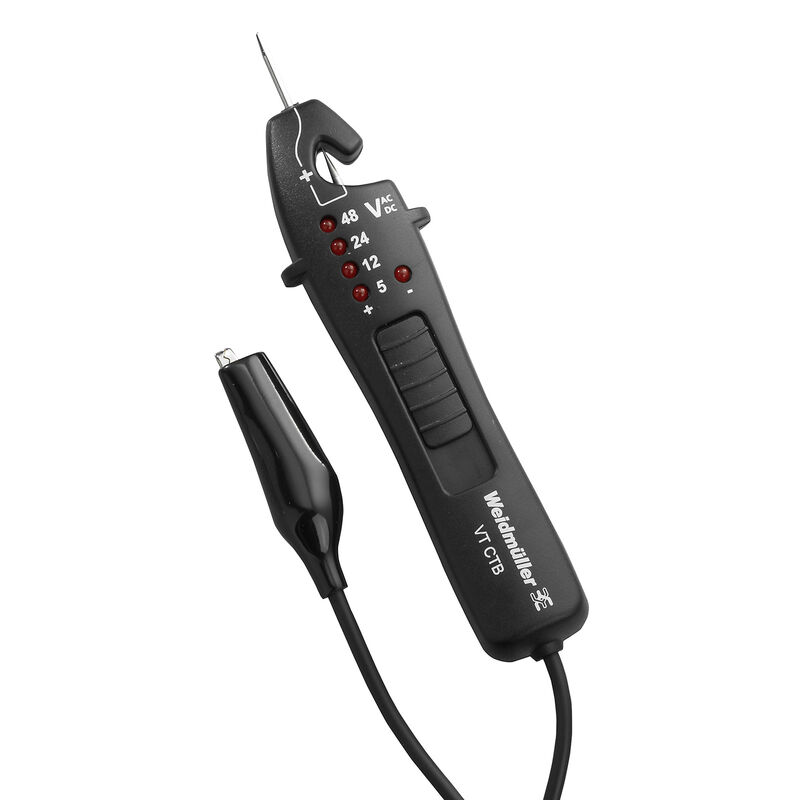

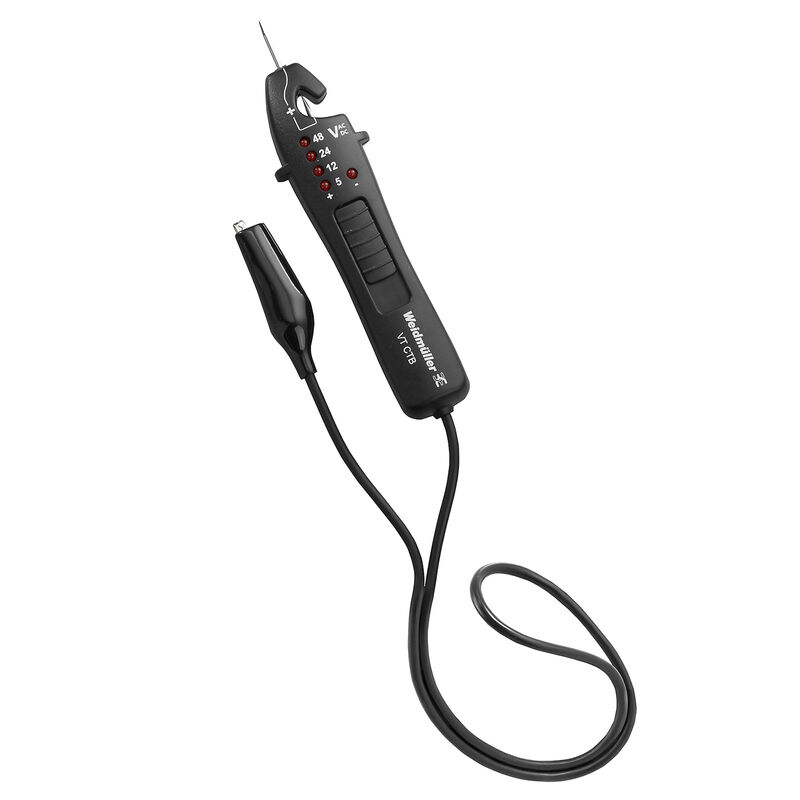

Testing tools, 2-pole voltage tester

Item No. 9918970000
Download data sheet Product Downloads
Accessories 1 Related products 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data Measuring and testing devices Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Testing tools, 2-pole voltage tester
Order No.
9918970000
Type
VT CTB
GTIN (EAN)
4032248405855
Qty.
1 items

Dimensions and weights

Depth
19 mm
Depth (inches)
0.748 inch
Height
21 mm
Height (inches)
0.827 inch
Width
137 mm
Width (inches)
5.394 inch
Length
137 mm
Length (inches)
5.394 inch
Net weight
50 g

Environmental Product Compliance

RoHS Compliance Status
Compliant
RoHS Exemption (if applicable/known)
7cI
REACH SVHC
No SVHC above 0.1 wt%
SCIP
b05b5122-6117-4cb0-b28c-df32f921fa36

Technical data

Description of article
Voltage tester up to 48 V

Measuring and testing devices

AC voltage measuring range
3-48 V
Continuity test
No
DC voltage measuring range
48 V
Display
LED
Frequency range, max.
65 Hz
Frequency range, min.
0 Hz
HOLD function
No
Load switchable
No
Phase sequence display
No
Protection degree
IP40
Rated voltage, max.
48 V DC
Rated voltage, min.
3 V DC
Test probe illumination
No
Tested and approved according to
EN 61010-1
EN 61326
Working temperature, max.
50 °C
Working temperature, min.
-10 °C

Classifications

ETIM 6.0
EC000494
ETIM 7.0
EC000494
ETIM 8.0
EC000494
ETIM 9.0
EC000494
ETIM 10.0
EC000494
ECLASS 9.0
27-20-03-08
ECLASS 9.1
27-20-03-08
ECLASS 10.0
27-20-03-08
ECLASS 11.0
27-20-03-08
ECLASS 12.0
27-20-03-08
ECLASS 13.0
27-20-03-08
ECLASS 14.0
27-20-03-08
ECLASS 15.0
27-20-03-08
