Properties

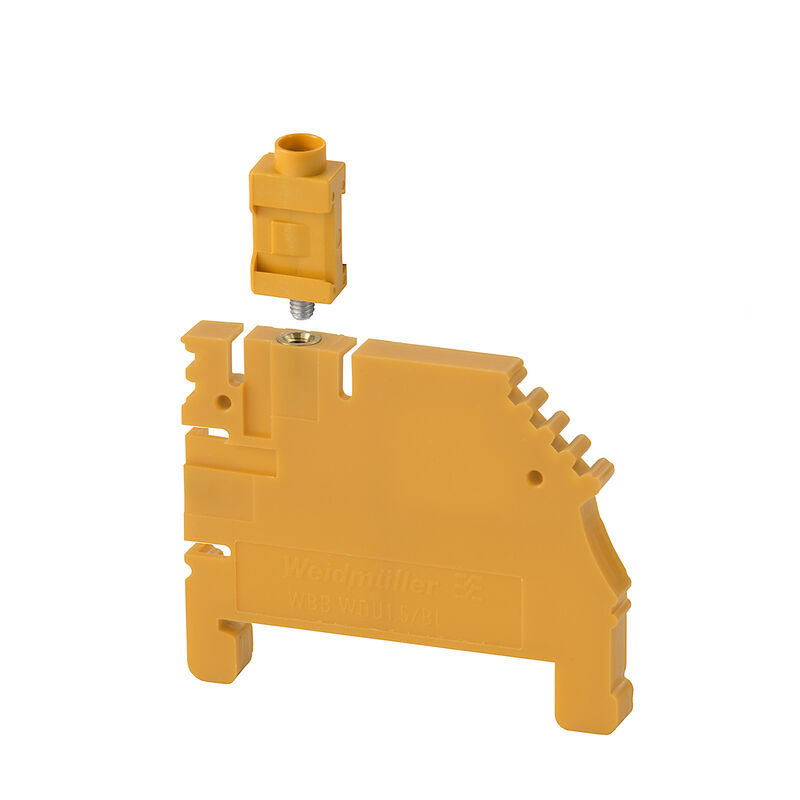

| Version | Partition plate (terminal), orange, Height: 45.4 mm, Width: 5 mm, V-2, PA 66 |
| Order No. | 1068160000 |
| Type | WBB WDU1.5/BL... |
| GTIN (EAN) | 4008190117191 |
| Qty. | 10 items |
| Depth | 36.7 mm |
| Depth (inches) | 1.445 inch |
| Height | 45.4 mm |
| Height (inches) | 1.787 inch |
| Width | 5 mm |
| Width (inches) | 0.197 inch |
| Net weight | 5.8 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 936a8f21-8ce1-4838-a60e-9ad69268c052 |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| Material | PA 66 |
| Colour | orange |
| UL 94 flammability rating | V-2 |
| Version | End and intermediate plate |
| Snap-on | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60219) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1068160000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1068160000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
