Properties
| Version | End bracket, Wemid, black, Rail: TS 35, when screwed in |
| Order No. | 1162600000 |

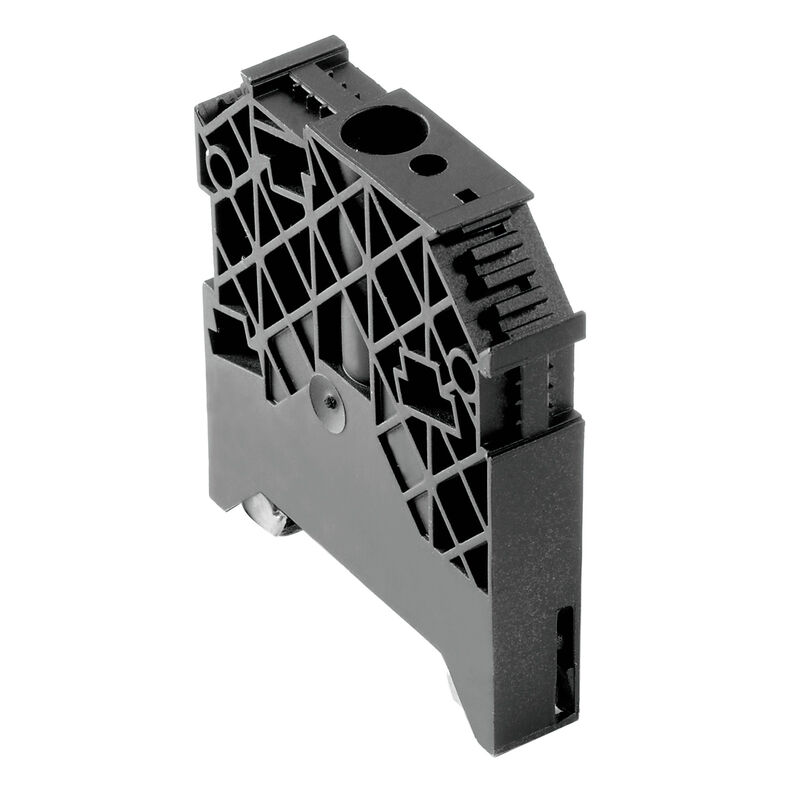

| Type | WEW 35/1 SW |
| GTIN (EAN) | 4032248972630 |
| Qty. | 50 items |
| Depth | 63 mm |
| Depth (inches) | 2.48 inch |
| Height | 56 mm |
| Height (inches) | 2.205 inch |
| Width | 12 mm |
| Width (inches) | 0.472 inch |
| Net weight | 37.48 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| REACH SVHC | / |
| Material | Wemid |
| Colour | black |
| UL 94 flammability rating | V-2 |
| Version | For the terminals |
| Rail | TS 35 |
| Installation advice | Direct mounting |
| Interlock | for screw fixing |
| Type of mounting | when screwed in |
| Tightening torque, max. | 2.4 Nm |
| Tightening torque, min. | 1.2 Nm |
| Installation advice | Direct mounting |
| Rail | TS 35 |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60623) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1162600000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1162600000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1162600000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001041 |
| ETIM 7.0 | EC001041 |
| ETIM 8.0 | EC001041 |
| ETIM 9.0 | EC001041 |
| ECLASS 9.0 | 27-14-11-35 |
| ECLASS 9.1 | 27-14-11-35 |
| ECLASS 10.0 | 27-14-11-35 |
| ECLASS 11.0 | 27-14-11-35 |
| ECLASS 12.0 | 27-14-11-35 |
| ECLASS 13.0 | 27-25-03-02 |
| ROHS | Conform |
