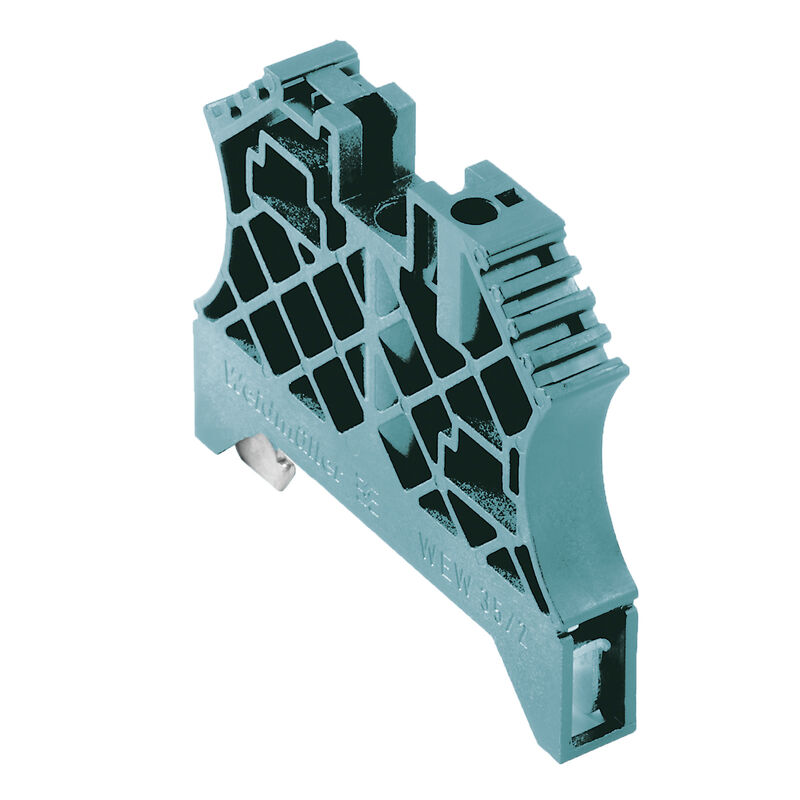

WEW 35/2 GR

End bracket, grey, TS 35, V-2, Wemid, Width: 8 mm, 100 °C

Item No. 1859200000

Properties

General ordering data

Version	End bracket, grey, TS 35, V-2, Wemid, Width: 8 mm, 100 °C
Order No.	1859200000
Type	WEW 35/2 GR
GTIN (EAN)	4032248411658
Qty.	50 items

Dimensions and weights

Depth	46.5 mm
Depth (inches)	1.831 inch
Height	56 mm
Height (inches)	2.205 inch
Width	8 mm
Width (inches)	0.315 inch
Net weight	14.04 g

Temperatures

Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	100 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	grey
UL 94 flammability rating	V-2

System specifications

Version	For the terminals
Rail	TS 35

Additional technical data

Installation advice	Direct mounting
Interlock	for screw fixing
Type of mounting	when screwed in

Conductors for clamping (rated connection)

Tightening torque, max.	1 Nm
Tightening torque, min.	0.5 Nm

General

Installation advice	Direct mounting
Rail	TS 35

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_64434)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1859200000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1859200000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1859200000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001041
ETIM 7.0	EC001041
ETIM 8.0	EC001041
ETIM 9.0	EC001041
ECLASS 9.0	27-14-11-35
ECLASS 9.1	27-14-11-35
ECLASS 10.0	27-14-11-35
ECLASS 11.0	27-14-11-35
ECLASS 12.0	27-14-11-35
ECLASS 13.0	27-25-03-02
ECLASS 14.0	27-25-03-02

Approvals

ROHS

Conform
