Properties
| Version | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection |
| Order No. | 1319080000 |

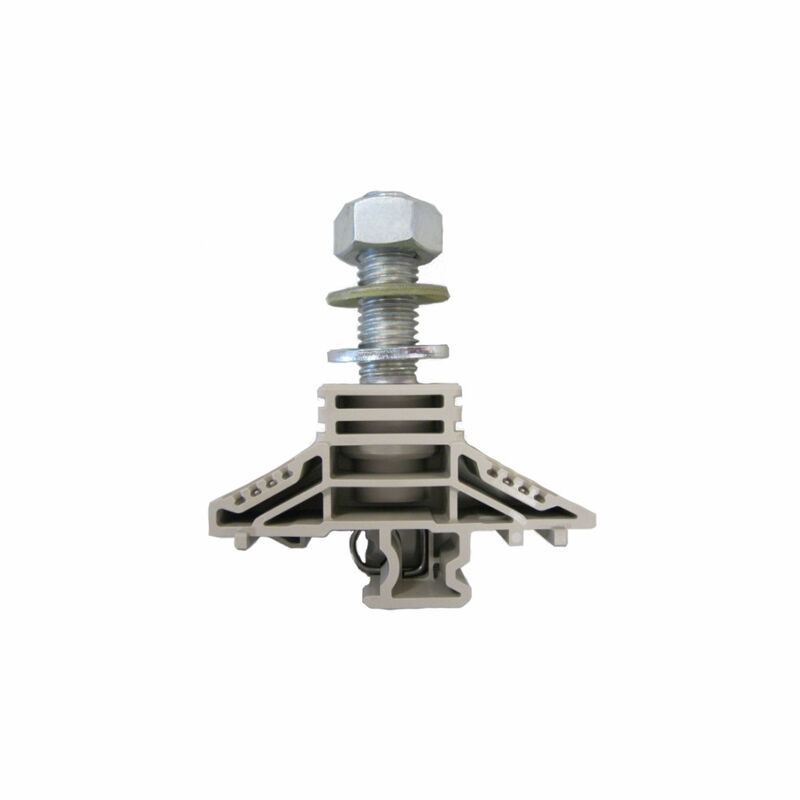

| Type | WF 12/32 |
| GTIN (EAN) | 4050118317220 |
| Qty. | 25 items |
| Depth | 77 mm |
| Depth (inches) | 3.031 inch |
| Height | 67 mm |
| Height (inches) | 2.638 inch |
| Width | 32 mm |
| Width (inches) | 1.26 inch |
| Net weight | 102.2 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version | Single-stud terminals |
| End cover plate required | No |
| Number of levels | 1 |
| Number of clamping points per level | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 32 |
| Explosion-tested version | No |
| Type of mounting | Snap-on |
| 2 x cable lugs DIN 46 234 | 6 to 120 mm² |
| 2 x cable lugs DIN 46 235 | 10...95 mm² |
| Cable lug to DIN 46234 | 6...120 mm² |
| Cable lug to DIN 46235 | 10...95 mm² |
| Clamping range, max. | 120 mm² |
| Clamping range, min. | 6 mm² |
| Connection cross-section, stranded, max. | 120 mm² |
| Connection cross-section, stranded, min. | 6 mm² |
| Number of connections | 1 |
| Stud size for spade connection | M 12 |
| Tightening torque, max. | 31 Nm |
| Tightening torque, min. | 14 Nm |
| Type of connection | Threaded stud connection |
| Wire connection cross section, finely stranded, max. | 120 mm² |
| Wire connection cross section, finely stranded, min. | 6 mm² |
| Wire connection cross-section, solid core, max. | 120 mm² |
| Wire connection cross-section, solid core, min. | 6 mm² |
| Rail | TS 32 |
| Rated cross-section | 120 mm² |
| Rated voltage | 1,000 V |
| Rated DC voltage | 1,000 V |
| Voltage with epoxy resin partition plate | 2,300 V |
| Rated current | 269 A |
| Current at maximum wires | 269 A |
| Volume resistance according to IEC 60947-7-x | 0.12 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Impulse voltage with epoxy resin partition plate | 12 kV |
| Power loss in accordance with IEC 60947-7-x | 8.61 W |
| Pollution severity | 3 |
| Approval/Certificate/Document of Conformity |
[CB Test Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89225)
[CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89226) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37308) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61189) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1319080000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1319080000) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| ECLASS 14.0 | 27-25-01-01 |
| Approvals |   |
| ROHS | Conform |
