Properties
| Version | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection, Direct mounting, TS 35 |
| Order No. | 1049240000 |

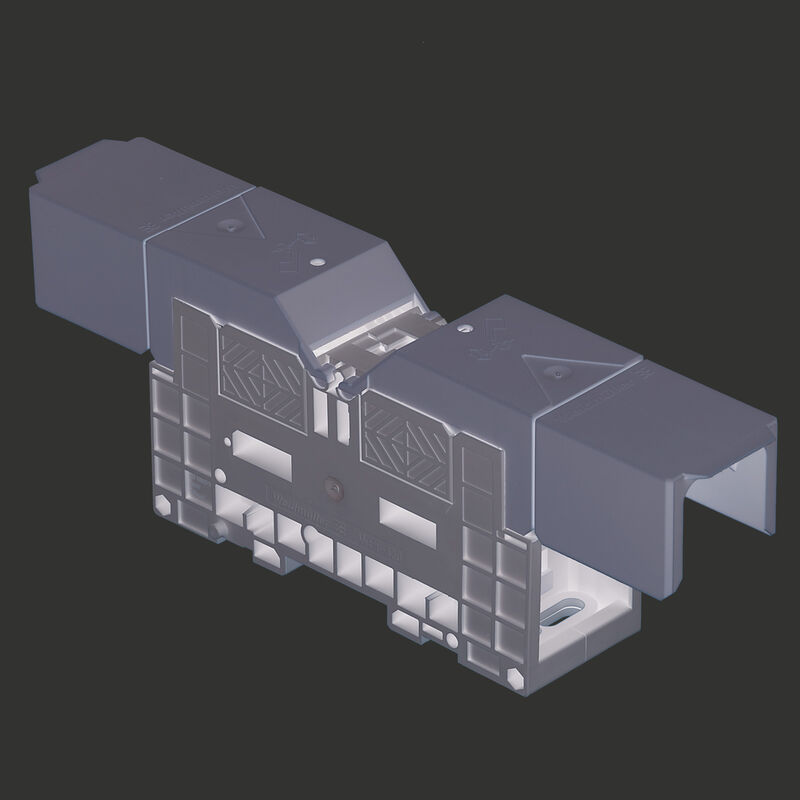

| Type | WFF 120 NFF |
| GTIN (EAN) | 4050118255140 |
| Qty. | 4 items |
| Depth | 72.5 mm |
| Depth (inches) | 2.854 inch |
| Height | 132 mm |
| Height (inches) | 5.197 inch |
| Width | 42 mm |
| Width (inches) | 1.654 inch |
| Net weight | 264.8 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| End cover plate required | No |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| Explosion-tested version | No |
| Installation advice |
Direct mounting
TS 35 |
| Open sides | closed |
| 2 x cable lugs DIN 46 234 | 6 to 120 mm² |
| 2 x cable lugs DIN 46 235 | 16...120 mm² |
| Cable lug to DIN 46234 | 6...150 mm² |
| Cable lug to DIN 46235 | 16...150 mm² |
| Clamping range, bolted connection , max. | 150 mm² |
| Clamping range, bolted connection , min. | 6 mm² |
| Clamping range, max. | 150 mm² |
| Clamping range, min. | 6 mm² |
| Connection cross-section, stranded, max. | 150 mm² |
| Connection cross-section, stranded, min. | 6 mm² |
| Number of connections | 2 |
| Tightening torque, max. | 36 Nm |
| Tightening torque, min. | 30 Nm |
| Type of connection | Threaded stud connection |
| Wire connection cross section, finely stranded, max. | 150 mm² |
| Wire connection cross section, finely stranded, min. | 6 mm² |
| Wire connection cross-section, solid core, max. | 150 mm² |
| Wire connection cross-section, solid core, min. | 6 mm² |
| Installation advice |
Direct mounting
TS 35 |
| Rail | TS 35 |
| Rated cross-section | 120 mm² |
| Rated voltage | 500 V |
| Rated DC voltage | 500 V |
| Rated current | 269 A |
| Current at maximum wires | 269 A |
| Volume resistance according to IEC 60947-7-x | 0.12 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 8.61 W |
| Approval/Certificate/Document of Conformity |
[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_273841)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59949) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1049240000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1049240000) |
| User Documentation |
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
[DIRECT MOUNTING WFF TERMINAL BLOCKS](https://mdcop.weidmueller.com/mediadelivery/asset/900_164386) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| ECLASS 14.0 | 27-25-01-01 |
| Approvals |   |
| ROHS | Conform |
Accessories
-
Item No.:1065600000Packaging unit:5 PC
Bolt-type screw terminals, Cross-connector, Number of poles: 3
-
Item No.:1065100000Packaging unit:5 PC
Bolt-type screw terminals, Cross-connector, Number of poles: 2
-
-
Item No.:1070460000Packaging unit:10 PC
Bolt-type screw terminals, Hood, beige, 40.6 mm
-
-
Item No.:1073000000Packaging unit:20 PC
Bolt-type screw terminals, Cover plate, dark beige, 2 mm
-
Item No.:1868880000Packaging unit:10 PC
Bolt-type screw terminals, Busbar, Number of poles:
-
Item No.:1067300000Packaging unit:10 PC
Bolt-type screw terminals, Partition plate, grey, 2 mm
-
Item No.:1059000000Packaging unit:50 PC
End bracket, dark beige, TS 35, V-2, Wemid, Width: 12 mm, 100 °C
-
Item No.:2619930000Packaging unit:600 PC
WS, Terminal marker, 12 x 6.5 mm, Weidmueller, white
-
Item No.:1609920000Packaging unit:540 PC
WS, Terminal marker, 12 x 6.5 mm, Pitch in mm (P): 6.50 Weidmueller, Allen-Bradley, white
-
Item No.:1609801044Packaging unit:1000 PC
Dekafix, Terminal marker, 5 x 5 mm, Pitch in mm (P): 5.00 Weidmueller, white
-
-
Item No.:1609930000Packaging unit:108 PC
WS, Terminal marker, 12 x 6.5 mm, Pitch in mm (P): 6.50 Weidmueller, Allen-Bradley, To customer specification
-
Item No.:0156400000Packaging unit:50 PC
Bolt-type screw terminals, Copper-plated aluminium washer
-
-
