WMF 2.5 FU 60-150V SW

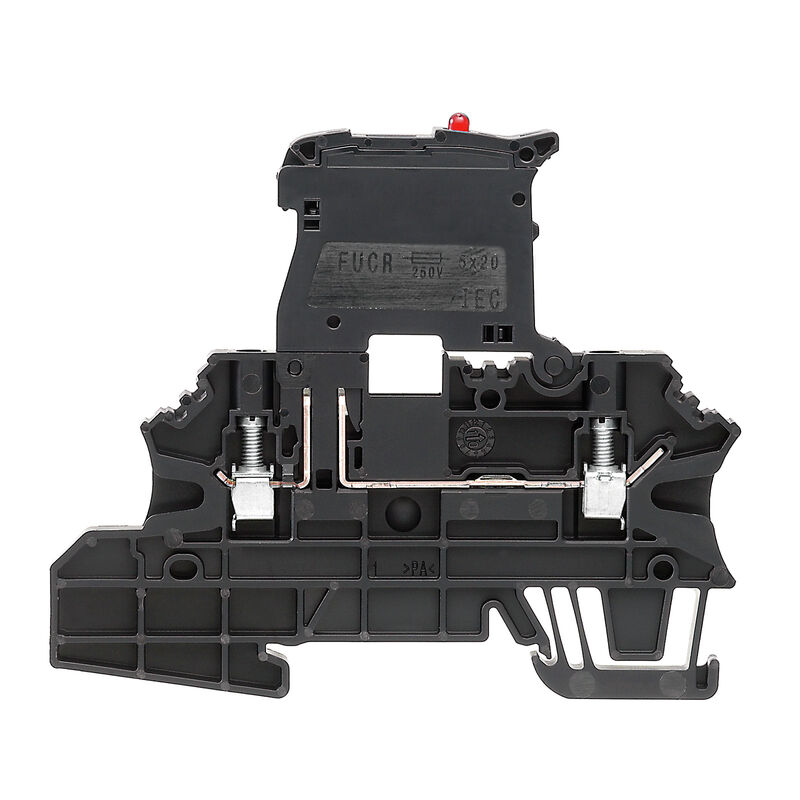

Product image
WMF 2.5 FU 60-150V SW

WMF 2.5 FU 60-150V SW

Fuse terminal, Screw connection, black, 2.5 mm², 6.3 A, 150 V, Number of connections: 2, Number of levels: 1, TS 35

Ürün No. 1162950000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 47 İlgili ürünler 34
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Important note Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
Certificate No. (cURusEX)
E184763

General ordering data

Versione
Fuse terminal, Screw connection, black, 2.5 mm², 6.3 A, 150 V, Number of connections: 2, Number of levels: 1, TS 35
N. d’ordine
1162950000
Tipo
WMF 2.5 FU 60-150V SW
GTIN (EAN)
4032248992096
Qty.
50 adet

Dimensions and weights

Profondità
74 mm
Depth (inches)
2,913 inch
Depth including DIN rail
74,5 mm
Posizione verticale
88 mm
Height (inches)
3,465 inch
Larghezza
5,08 mm
Width (inches)
0,2 inch
Net weight
19,7 g

Temperatures

Temperatura di magazzinaggio
-25 °C...55 °C
Temperatura ambiente
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

Stato conformità RoHS
Compliant with exemption
RoHS Exemption (if applicable/known)
7cI
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
black
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
DEMKO14ATEX1389U
Certificate No. (IECEX)
IECEXUL14.0097U
Current (ATEX)
6.3 A
Wire cross section max. (ATEX)
4 mm²
Current (IECEX)
6.3 A
Wire cross section max. (IECEX)
4 mm²
Marcatura EN 60079-7
Ex ec II C Gc
Ex 2014/34/EU label
II 3 G

System specifications

Version
Screw connection
Fuse isolator
for plug-in cross-connector
One end without connector
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Levels cross-connected internally
Yes
PE connection
No
Mounting rail
TS 35
PE function
No

Additional technical data

Open sides
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Tipo di collegamento, ulteriore collegamento
Screw connection

Conductors for clamping (rated connection)

Screw connection
Anslutningstyp 2
Screw connection
Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0,5 mm²
Clamping screw
M 3
Connection cross-section, finely stranded, min.
0,5 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,5 mm²
Connection direction
on side
Gauge to IEC 60947-1
A3
Moment obrotowy dociągający, min.
0,5 Nm
Number of connections
2
Tightening torque, max.
0,6 Nm
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,5 mm²
Длина зачистки изоляции
10 mm

CSA rating data

Certificate No. (CSA)
200039-1057876
Current size B (CSA)
17 A
Current size C (CSA)
17 A
Current size D (CSA)
5 A
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
26 AWG

General

Guida equipaggiata
TS 35
Norme
IEC 60947-7-3
Sezione di collegamento cavo AWG, max.
AWG 12
Sezione di collegamento cavo AWG, min.
AWG 26

Rating data

Rated cross-section
2,5 mm²
Rated voltage
150 V
Rated DC voltage
150 V
Nominal current
6,3 A
Current at maximum wires
6,3 A
Standards
IEC 60947-7-3
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
26 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
26 AWG
Current size B (cURus)
17 A
Current size C (cURus)
17 A
Current size D (cURus)
5 A
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V
Wire cross section max. (cURus)
12 AWG
Wire cross section min. (cURus)
26 AWG

Important note

Informazioni sul prodotto
The voltage depends on the selected fuse element or the selected indicator light

Classifications

ETIM 8.0
EC000899
ETIM 9.0
EC000899
ETIM 10.0
EC000899
ECLASS 14.0
27-25-01-13
ECLASS 15.0
27-25-01-13
