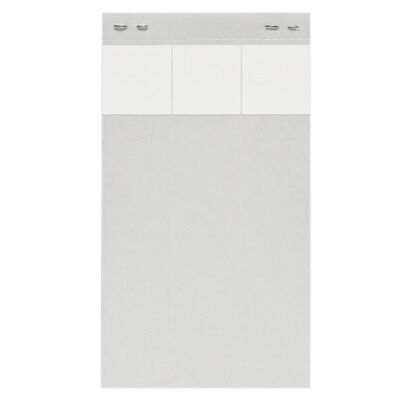

WO 127/25 TP

WO 127/25 TP

WriteOn, Conductor and cable markers, 8 - 32.3 mm, 25 x 127 mm, white

Tuotteen tunnus 1609770000
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 2
General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications Approvals

General ordering data

Version
WriteOn, Conductor and cable markers, 8 - 32.3 mm, 25 x 127 mm, white
Order No.
1609770000
Type
WO 127/25 TP
GTIN (EAN)
4008190085810
Qty.
1  items

Dimensions and weights

Depth
0,08  mm
Depth (inches)
0,003  inch
Height
25  mm
Height (inches)
0,984  inch
Width
127  mm
Width (inches)
5  inch
Net weight
33  g

Temperatures

Operating temperature range
-40...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Adhesive
Polyacrylate adhesive
Approval acc. to UL 969
No
Colour
white
Halogen
Yes
Material
Vinyl film
Material colour according to resistance code
9
Operating temperature range
-40...80 °C
Operating temperature range, max.
80  °C
Operating temperature range, min.
−40  °C
Printed characters
without
Type of printing
neutral
UL 94 flammability rating
V-0
Version
Self-adhesive
Width
127  mm

Conductor and cable markers

Conductor cross-section, max.
150  mm²
Conductor cross-section, min.
70  mm²
Conductor O.D.
8 - 32.3 mm
Conductor O.D., max.
32,3  mm
Conductor O.D., min.
8  mm
Cross-section for connected wire
70 - 150 mm²
Halogen
Yes
Text field height
25,4  mm
Text field width
25,4  mm

Classifications

ETIM 6.0
EC001530
ETIM 7.0
EC001530
ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 9.0
27-40-04-01
ECLASS 9.1
27-40-04-01
ECLASS 10.0
27-40-04-01
ECLASS 11.0
27-28-11-02
ECLASS 12.0
27-28-11-02
ECLASS 13.0
27-28-11-02
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02

Approvals

ROHS
Conform
