Properties

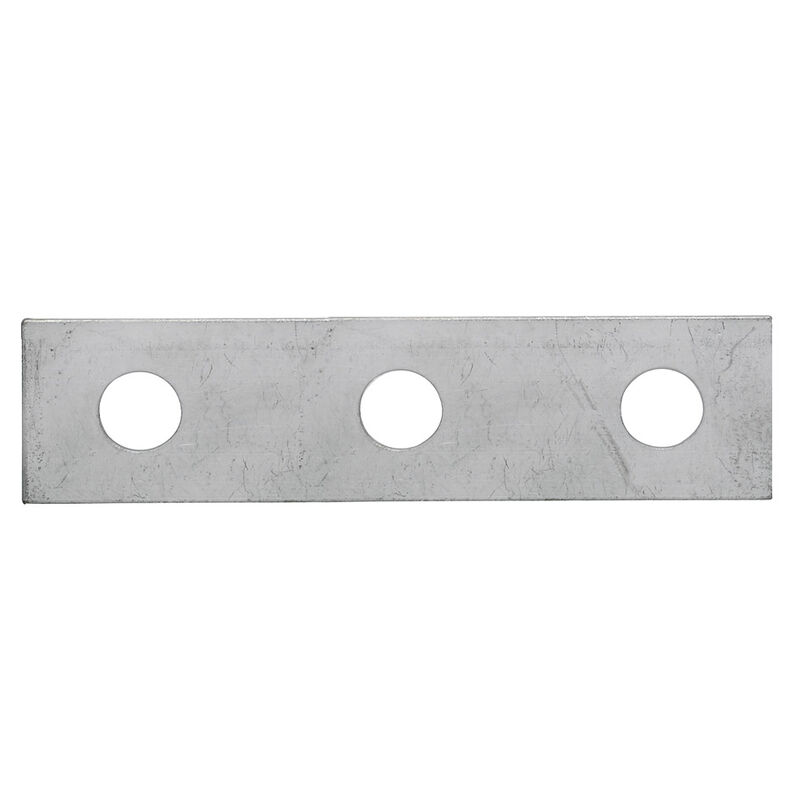

| Version | Bolt-type screw terminals, Cross-connector, Number of poles: 3 |
| Order No. | 1781020000 |
| Type | WQL 3 WF10 |
| GTIN (EAN) | 4032248241217 |
| Qty. | 5 items |
| Depth | 4 mm |
| Depth (inches) | 0.157 inch |
| Height | 95.6 mm |
| Height (inches) | 3.764 inch |
| Width | 25 mm |
| Width (inches) | 0.984 inch |
| Net weight | 75.8 g |
| Storage temperature | -25 °C...55 °C |
| REACH SVHC | / |
| Material | Copper - zinc |
| Colour | grey |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Number of cross-connected terminals | 3 |
| Rated current, 2-pole | 269 A |
| Rated current, multi-pole | 265 A |
| Type | Cross-connector |
| Pitch in mm (P) | 33.8 mm |
| Installation advice | Direct mounting |
| Number of poles | 3 |
| Rated current | 269 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63670) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1781020000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1781020000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1781020000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ROHS | Conform |
