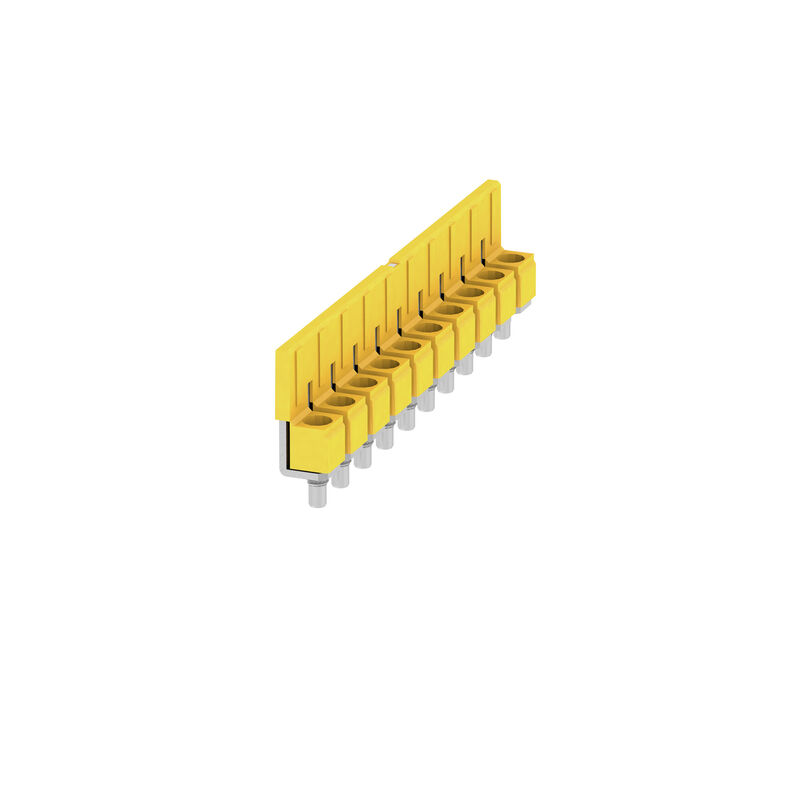

WQV 6/10

Cross-connector (terminal), when screwed in, yellow, 57 A, Number of poles: 10, Pitch in mm (P): 8.00, Insulated: Yes, Width: 7.6 mm

Item No. 1052260000

Properties

General ordering data

Version	Cross-connector (terminal), when screwed in, yellow, 57 A, Number of poles: 10, Pitch in mm (P): 8.00, Insulated: Yes, Width: 7.6 mm
Order No.	1052260000
Type	WQV 6/10
GTIN (EAN)	4008190153977
Qty.	20 items

Dimensions and weights

Depth	18 mm
Depth (inches)	0.709 inch
Height	77.3 mm
Height (inches)	3.043 inch
Width	7.6 mm
Width (inches)	0.299 inch
Net weight	16.75 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	PA 66
Colour	yellow
UL 94 flammability rating	V-0

System specifications

Version

For the terminals

Additional technical data

Installation advice	Direct mounting
Type of fixing	when screwed in

Cross-connector

Number of cross-connected terminals	10
Rated current, multi-pole	57 A
Tightening torque range for fixing screw	0.5...1.0 Nm
Type	Cross-connector

Dimensions

Pitch in mm (P)	8 mm
TS 35 offset	28 mm

General

Installation advice	Direct mounting
Number of poles	10

Rating data

Rated current

57 A

Downloads

Approval/Certificate/Document of Conformity	[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- 08861_WQV_6-10_DXF.dxf](https://mdcop.weidmueller.com/mediadelivery/asset/900_36059) [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224196)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1052260000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1052260000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1052260000&norm=0)
User Documentation	[Beipackzettel_WQV.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35346) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000489
ETIM 7.0	EC000489
ETIM 8.0	EC000489
ETIM 9.0	EC000489
ECLASS 9.0	27-14-11-40
ECLASS 9.1	27-14-11-40
ECLASS 10.0	27-14-11-40
ECLASS 11.0	27-14-11-40
ECLASS 12.0	27-14-11-40
ECLASS 13.0	27-25-03-03
ECLASS 14.0	27-25-03-03

Approvals

ROHS

Conform
