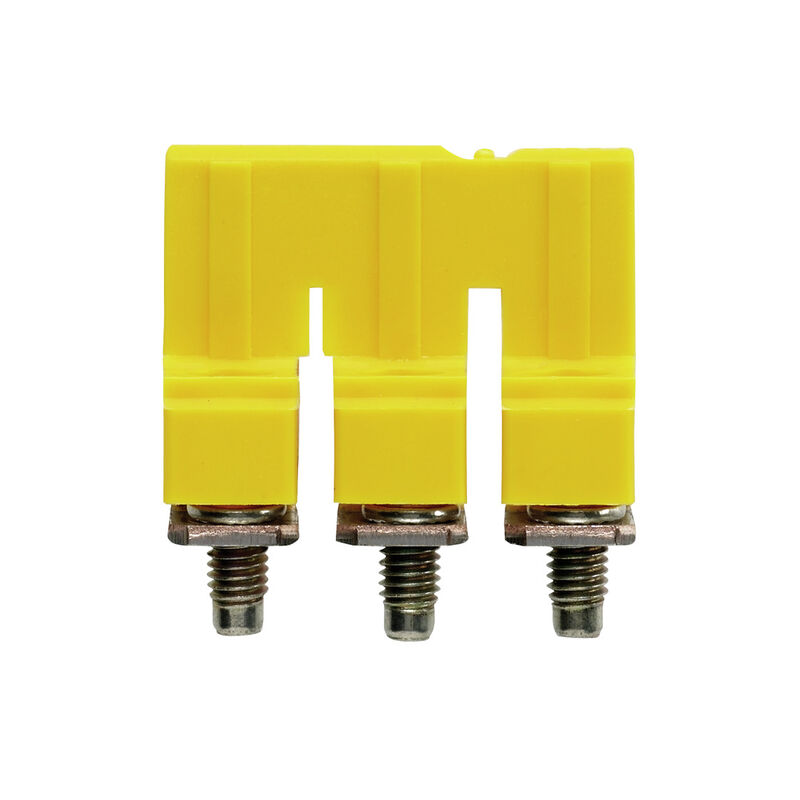

WQV 6/3

Cross-connector (terminal), when screwed in, yellow, 57 A, Number of poles: 3, Pitch in mm (P): 8.00, Insulated: Yes, Width: 7.6 mm

Item No. 1054760000

Properties

General ordering data

Version	Cross-connector (terminal), when screwed in, yellow, 57 A, Number of poles: 3, Pitch in mm (P): 8.00, Insulated: Yes, Width: 7.6 mm
Order No.	1054760000
Type	WQV 6/3
GTIN (EAN)	4008190174163
Qty.	50 items

Dimensions and weights

Depth	18 mm
Depth (inches)	0.709 inch
Height	22 mm
Height (inches)	0.866 inch
Width	7.6 mm
Width (inches)	0.299 inch
Net weight	4.9 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	PA 66
Colour	yellow
UL 94 flammability rating	V-0

System specifications

Version

For the terminals

Additional technical data

Installation advice	Direct mounting
Type of fixing	when screwed in

Cross-connector

Number of cross-connected terminals	3
Rated current, multi-pole	57 A
Tightening torque range for fixing screw	0.5...1.0 Nm
Type	Cross-connector

Dimensions

Pitch in mm (P)

8 mm

General

Installation advice	Direct mounting
Number of poles	3

Rating data

Rated current

57 A

Downloads

Approval/Certificate/Document of Conformity	[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- 08861_WQV_6-3_DXF.dxf](https://mdcop.weidmueller.com/mediadelivery/asset/900_36060) [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224208)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1054760000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1054760000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1054760000&norm=0)
User Documentation	[Beipackzettel_WQV.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35346) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000489
ETIM 7.0	EC000489
ETIM 8.0	EC000489
ETIM 9.0	EC000489
ECLASS 9.0	27-14-11-40
ECLASS 9.1	27-14-11-40
ECLASS 10.0	27-14-11-40
ECLASS 11.0	27-14-11-40
ECLASS 12.0	27-14-11-40
ECLASS 13.0	27-25-03-03
ECLASS 14.0	27-25-03-03

Approvals

ROHS

Conform

Accessories

ToolsCuttingMiscellaneousCutting and notching tools for cross-connections

WAW 1 NEUTRAL

Item No.:

9004500000

Packaging unit:

1 PC

Miscellaneous tools

Data sheet Downloads

Is accessory of

Terminal BlocksApplication rangeInstrument transformer wiringClamping yoke technologyMeasuring transducer feed-through terminal blocks6 mm²

WTD 6 SL

Item No.:

9538090000

Packaging unit:

50 PC

Feed-through terminal block, Screw connection, dark beige, 6 mm², 41 A, 630 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 120 °C

Data sheet Downloads

WTD 6 SL/EN

Item No.:

9538100000

Packaging unit:

50 PC

Feed-through terminal block, Screw connection, dark beige, 6 mm², 41 A, 630 V, Number of connections: 2, Number of levels: 1, TS 32, TS 35, V-0, Wemid, 120 °C

Data sheet Downloads

WTD 6/1 EN

Item No.:

1934830000

Packaging unit:

50 PC

Feed-through terminal block, Screw connection, dark beige, 6 mm², 41 A, 630 V, Number of connections: 2, Number of levels: 1, TS 32, TS 35, V-0, Wemid, 120 °C

Data sheet Downloads

WTD 6 SL O.STB

Item No.:

1238920000

Packaging unit:

50 PC

Feed-through terminal block, Screw connection, dark beige, 6 mm², 41 A, 630 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 120 °C

Data sheet Downloads

Terminal BlocksUniversal rangeClamping yoke technologyW-SeriesStandardterminal blocks with spring-loaded cable clamp1-tier6 mm²

WDU 6 SL/EN SW

Item No.:

9537430000

Packaging unit:

50 PC

Feed-through terminal block, Screw connection, black, 6 mm², 41 A, 690 V, Number of connections: 2, Number of levels: 1, TS 32, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

WDU 6 SL

Item No.:

9537460000

Packaging unit:

50 PC

Feed-through terminal block, Screw connection, dark beige, 6 mm², 41 A, 630 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

WDU 6 SL/EN

Item No.:

9537470000

Packaging unit:

50 PC

Feed-through terminal block, Screw connection, dark beige, 6 mm², 41 A, 690 V, Number of connections: 2, Number of levels: 1, TS 32, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

Terminal BlocksUniversal rangeClamping yoke technologyW-SeriesStandardFeed-through terminal blocks1-tier6 mm²

WDU 6 GN

Item No.:

1020290000

Packaging unit:

100 PC

Feed-through terminal block, Screw connection, green, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

WDU 6 GE

Item No.:

1040220000

Packaging unit:

100 PC

Feed-through terminal block, Screw connection, yellow, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

WDU 6 OR

Item No.:

1020260000

Packaging unit:

100 PC

Feed-through terminal block, Screw connection, orange, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

WDU 6 HV

Item No.:

1412970000

Packaging unit:

100 PC

Feed-through terminal block, Screw connection, dark beige, 6 mm², 41 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

WDU 6 SW

Item No.:

1020210000

Packaging unit:

100 PC

Feed-through terminal block, Screw connection, black, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

WDU 6 IR

Item No.:

1393350000

Packaging unit:

100 PC

Feed-through terminal block, Screw connection, dark beige, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

WDU 6

Item No.:

1020200000

Packaging unit:

100 PC

Feed-through terminal block, Screw connection, dark beige, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

WDU 6 BL

Item No.:

1020280000

Packaging unit:

100 PC

Feed-through terminal block, Screw connection, blue, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

WDU 6 PACK

Item No.:

1781740000

Packaging unit:

1 PC

Feed-through terminal block, Screw connection, dark beige, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

WDU 6 GR

Item No.:

1039600000

Packaging unit:

100 PC

Feed-through terminal block, Screw connection, grey, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

WDU 6 WS

Item No.:

1039700000

Packaging unit:

100 PC

Feed-through terminal block, Screw connection, white, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

WDU 6 CUN

Item No.:

1025200000

Packaging unit:

50 PC

Feed-through terminal block, Screw connection, dark beige, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

WDU 6 RT

Item No.:

1020240000

Packaging unit:

100 PC

Feed-through terminal block, Screw connection, red, 6 mm², 41 A, 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C

Data sheet Downloads

Terminal BlocksApplication rangeInstrument transformer wiringClamping yoke technologyMeasuring transducer terminal blocks6 mm²

WTL 6 SL/EN

Item No.:

9538080000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTQ 6/1 EN

Item No.:

1934790000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/1 EN BL

Item No.:

1019670000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6 SL GWHUE

Item No.:

2595900000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/1 EN STB BL

Item No.:

1019680000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/3/STB GE

Item No.:

1062130000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/3 BR

Item No.:

1018640000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6 SL

Item No.:

1161690000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/1 EN STB RT

Item No.:

1019710000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/1/STB/TNSC/EN

Item No.:

1938820000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/3

Item No.:

1018800000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/1 EN STB GR

Item No.:

1019690000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/3/STB BL

Item No.:

1062120000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/1/TNSC/EN

Item No.:

1345280000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/2

Item No.:

1017700000

Packaging unit:

50 PC

Test-disconnect terminal, Screw connection, dark beige, 6 mm², 41 A, 500 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid

Data sheet Downloads

WTL 6 SL O.STB

Item No.:

1238930000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/3/STB

Item No.:

1018600000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/1 EN STB

Item No.:

1934820000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/3/STB SW

Item No.:

1060370000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTQ 6/1/STB

Item No.:

1018100000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTQ 6/1 EN STB

Item No.:

1934800000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/1 EN

Item No.:

1934810000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads

WTL 6/1 EN STB SW

Item No.:

1062520000

Packaging unit:

50 PC

Measuring transformer disconnect terminal, Screw connection, 41, 2

Data sheet Downloads
