Properties
| Version | WS, Terminal marker, 10 x 15 mm, Pitch in mm (P): 15.00 Weidmueller, Allen-Bradley, To customer specification |
| Order No. | 1854100000 |

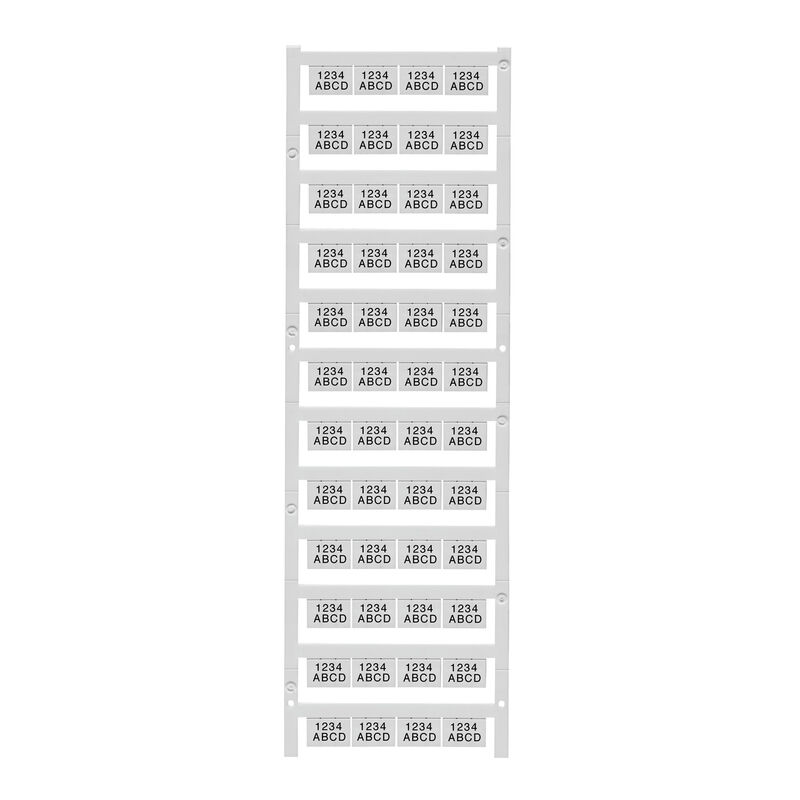

| Type | WS 10/15 MC SDR |
| GTIN (EAN) | 4032248390700 |
| Qty. | 48 items |
| Height | 10 mm |
| Height (inches) | 0.394 inch |
| Width | 15 mm |
| Width (inches) | 0.591 inch |
| Net weight | 0.375 g |
| Operating temperature range | -40...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Application/manufacturer |
Weidmueller
Allen-Bradley |
| Colour | To customer specification |
| Colour of printing | black |
| Halogen | No |
| Material | Polyamide 66 |
| Material colour according to resistance code | 9 |
| Number of markers per combination | 1 MultiCard = Terminal marker |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | Based on customer requirements (Please send M-Print PRO file) |
| Printing method | MC Laser |
| UL 94 flammability rating | V-2 |
| Width | 15 mm |
| Pitch in mm (P) | 15 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1854100000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
