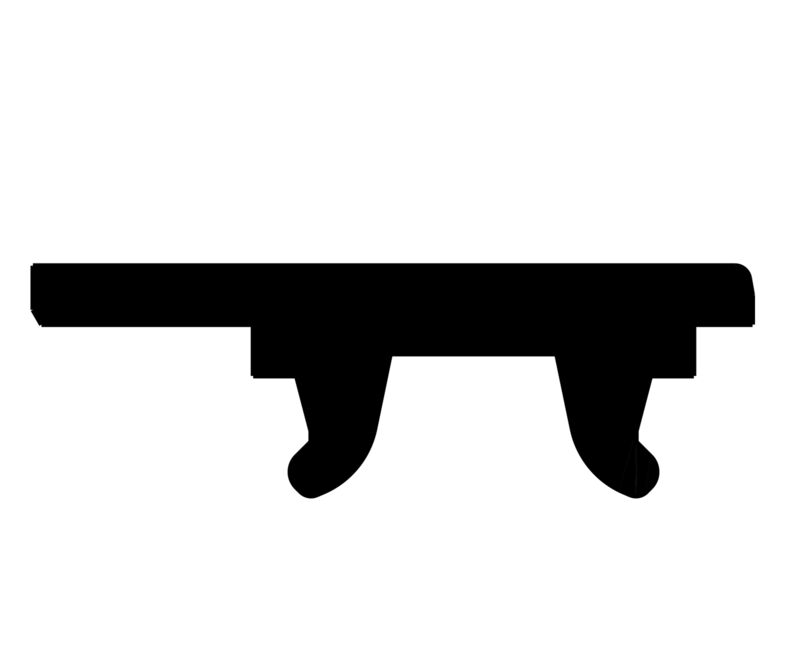

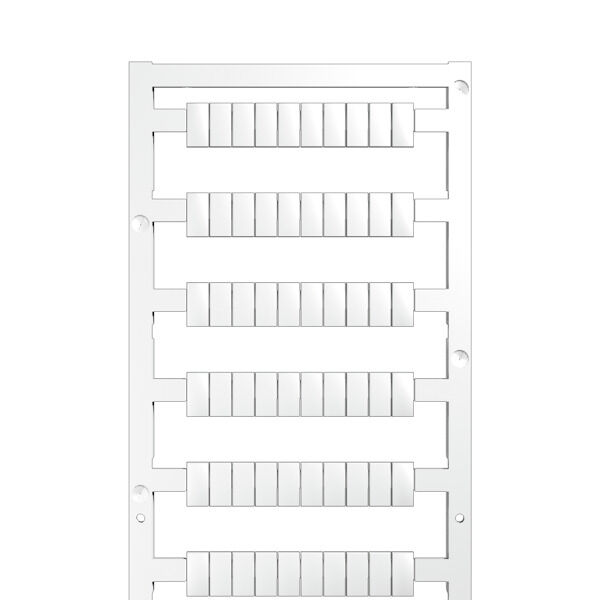

WS 10/5 M PLUS MC SDR — Similar to illustration

Similar to illustration

Download data sheet Related products

WS 10/5 M PLUS MC SDR

WS, Terminal marker, 10 x 5 mm, Pitch in mm (P): 5.00 Weidmueller, Allen-Bradley, To customer specification

Item No. 2007770000

Properties

General ordering data

Version	WS, Terminal marker, 10 x 5 mm, Pitch in mm (P): 5.00 Weidmueller, Allen-Bradley, To customer specification
Order No.	2007770000
Type	WS 10/5 M PLUS MC SDR
GTIN (EAN)	4050118393279
Qty.	120 items

Dimensions and weights

Height	10 mm
Height (inches)	0.394 inch
Width	5 mm
Width (inches)	0.197 inch
Net weight	0.121 g

Temperatures

Operating temperature range

-40...100 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General data

Application/manufacturer	Weidmueller Allen-Bradley
Colour	To customer specification
Colour of printing	black
Halogen	No
Material	Polyamide 66
Number of markers per combination	1 MultiCard = Terminal marker
Number of markers per packaging unit	Form of supply: MultiCard
Operating temperature range	-40...100 °C
Operating temperature range, max.	100 °C
Operating temperature range, min.	-40 °C
Printed characters	Based on customer requirements (Please send M-Print PRO file)
Printing method	MC Laser
UL 94 flammability rating	V-2
Width	5 mm

Connector markers

Pitch in mm (P)

5 mm

Downloads

Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2007770000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000761
ETIM 7.0	EC000761
ETIM 8.0	EC000761
ETIM 9.0	EC000761
ECLASS 9.0	27-14-11-37
ECLASS 9.1	27-14-11-37
ECLASS 10.0	27-14-11-37
ECLASS 11.0	27-28-11-01
ECLASS 12.0	27-28-11-01
ECLASS 13.0	27-28-11-01
ECLASS 14.0	27-28-11-01

Approvals

ROHS

Conform
