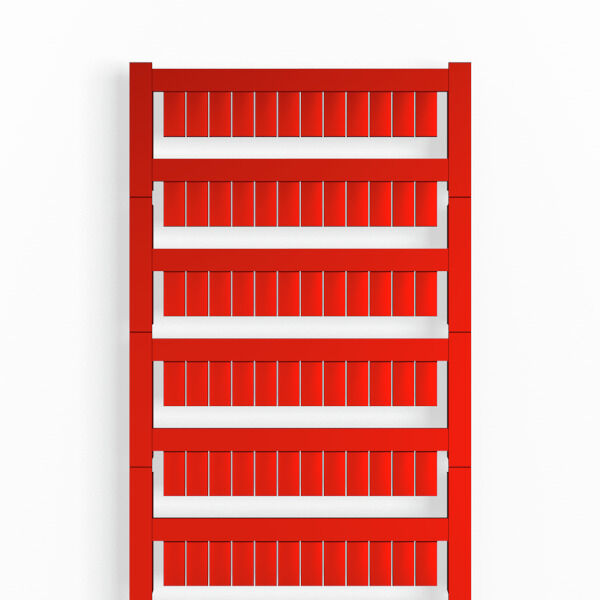

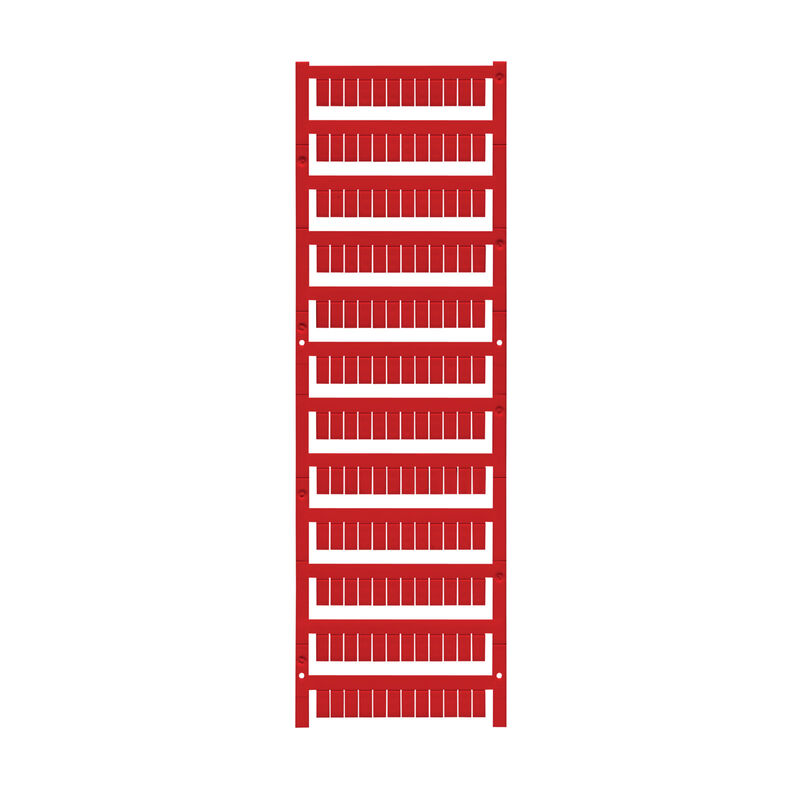

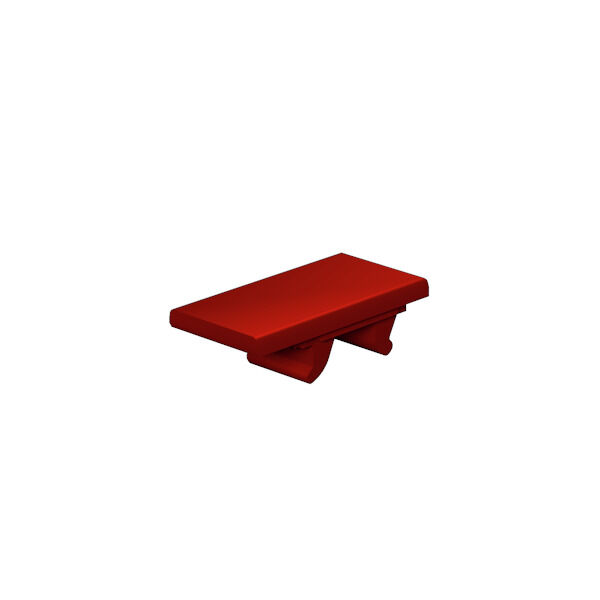

WS 10/5 MC NE RT

WS, Terminal marker, 10 x 5 mm, Pitch in mm (P): 5.00 Weidmueller, Allen-Bradley, red

Item No. 1773531686

Properties

General ordering data

Version	WS, Terminal marker, 10 x 5 mm, Pitch in mm (P): 5.00 Weidmueller, Allen-Bradley, red
Order No.	1773531686
Type	WS 10/5 MC NE RT
GTIN (EAN)	4032248141746
Qty.	720 items
Alternative product	[1635010000](~/p/1635010000)

Dimensions and weights

Height	10 mm
Height (inches)	0.394 inch
Width	5 mm
Width (inches)	0.197 inch
Net weight	0.16 g

Temperatures

Operating temperature range

-40...100 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General data

Application/manufacturer	Weidmueller Allen-Bradley
Colour	red
Colour of printing	black
compatible printer	[PRINTJET CONNECT](~/p/2715590000)
Halogen	No
Material	Polyamide 66
Material colour according to resistance code	2
Number of markers per combination	1 MultiCard = Terminal marker
Number of markers per packaging unit	Form of supply: MultiCard
Operating temperature range	-40...100 °C
Operating temperature range, max.	100 °C
Operating temperature range, min.	-40 °C
Printed characters	neutral
UL 94 flammability rating	V-2
Width	5 mm

Connector markers

Pitch in mm (P)

5 mm

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63572)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1773531686)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1773531686)
Product Change Notification	[Technical change - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_156710) [Technical change - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_156711) [MultiCard Material modification](https://mdcop.weidmueller.com/mediadelivery/asset/900_308560) [MultiCard Material Modifikation](https://mdcop.weidmueller.com/mediadelivery/asset/900_308561)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000761
ETIM 7.0	EC000761
ETIM 8.0	EC000761
ETIM 9.0	EC000761
ECLASS 9.0	27-14-11-37
ECLASS 9.1	27-14-11-37
ECLASS 10.0	27-14-11-37
ECLASS 11.0	27-28-11-01
ECLASS 12.0	27-28-11-01
ECLASS 13.0	27-28-11-01
ECLASS 14.0	27-28-11-01

Approvals

ROHS

Conform
