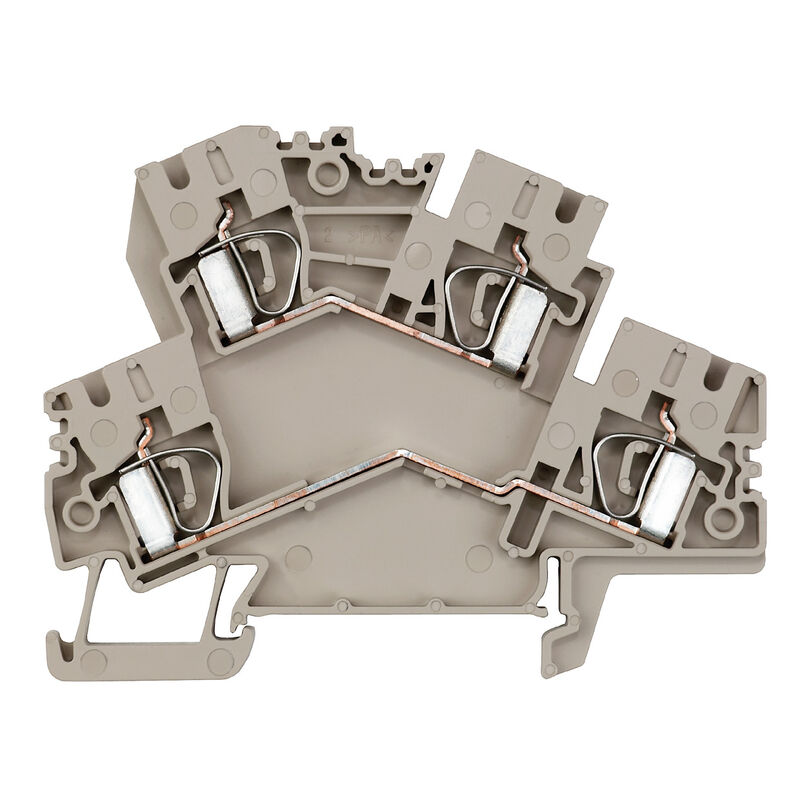

ZDK 4-2 EL

Feed-through terminal, Double-tier terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, dark beige

Item No. 8709760000

Properties

General ordering data

Version	Feed-through terminal, Double-tier terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, dark beige
Order No.	8709760000
Type	ZDK 4-2 EL
GTIN (EAN)	4032248384365
Qty.	50 items

Dimensions and weights

Depth	60 mm
Depth (inches)	2.362 inch
Depth including DIN rail	61 mm
Height	77.6 mm
Height (inches)	3.055 inch
Width	6.1 mm
Width (inches)	0.24 inch
Net weight	17.06 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version	Tension-clamp connection for plug-in cross-connector One end without connector
End cover plate required	Yes
Number of potentials	2
Number of levels	2
Number of clamping points per level	2
Levels cross-connected internally	Yes
PE connection	No
Rail	TS 35

Additional technical data

Explosion-tested version	No
Open sides	right
Type of mounting	Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection

Tension-clamp connection

Conductors for clamping (rated connection)

Blade size	0.6 x 3.5 mm
Clamping range, max.	6 mm²
Clamping range, min.	0.13 mm²
Connection cross-section, finely stranded, max.	6 mm²
Connection cross-section, finely stranded, min.	0.5 mm²
Connection cross-section, stranded, max.	4 mm²
Connection cross-section, stranded, min.	0.5 mm²
Connection direction	Inclined / angled
Gauge to IEC 60947-1	A3
Number of connections	4
Stripping length	10 mm
Tube length for twin wire-end ferrule	Tube length: min.: 8 mm max.: 12 mm Cross-section for conductor connection: nominal: 0.5 mm² Tube length: min.: 8 mm max.: 12 mm Cross-section for conductor connection: nominal: 0.75 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Tube length: min.: 8 mm max.: 10 mm Cross-section for conductor connection: nominal: 0.5 mm² Tube length: min.: 6 mm max.: 12 mm Cross-section for conductor connection: nominal: 0.75 mm² Tube length: min.: 6 mm max.: 12 mm Cross-section for conductor connection: nominal: 1 mm² Tube length: min.: 8 mm max.: 12 mm Cross-section for conductor connection: nominal: 1.5 mm² Tube length: min.: 8 mm max.: 12 mm Cross-section for conductor connection: nominal: 2.5 mm² Tube length: min.: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 4 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Tube length: nominal: 10 mm Cross-section for conductor connection: nominal: 0.5 mm² Tube length: nominal: 10 mm Cross-section for conductor connection: nominal: 0.75 mm² Tube length: nominal: 10 mm Cross-section for conductor connection: nominal: 1 mm² Tube length: min.: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 1.5 mm² Tube length: min.: 10 mm max.: 12 mm Cross-section for conductor connection: nominal: 2.5 mm² Tube length: nominal: 12 mm Cross-section for conductor connection: nominal: 4 mm²
Twin wire-end ferrules, max.	1.5 mm²
Twin wire-end ferrules, min.	0.5 mm²
Type of connection	Tension-clamp connection
Type of connection 2	Tension-clamp connection
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	6 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

General

Rail	TS 35
Standards	IEC 60947-7-1

Rating data

Rated cross-section	4 mm²
Rated voltage	800 V
Rated DC voltage	800 V
Rated current	32 A
Current at maximum wires	32 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	1.02 W
Pollution severity	3

Important note

Product information

The allowed continuous operating temperature must be observed

Downloads

Approval/Certificate/Document of Conformity	[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36797) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212425)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.8709760000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8709760000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=8709760000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-02
ECLASS 14.0	27-25-01-02
