Properties

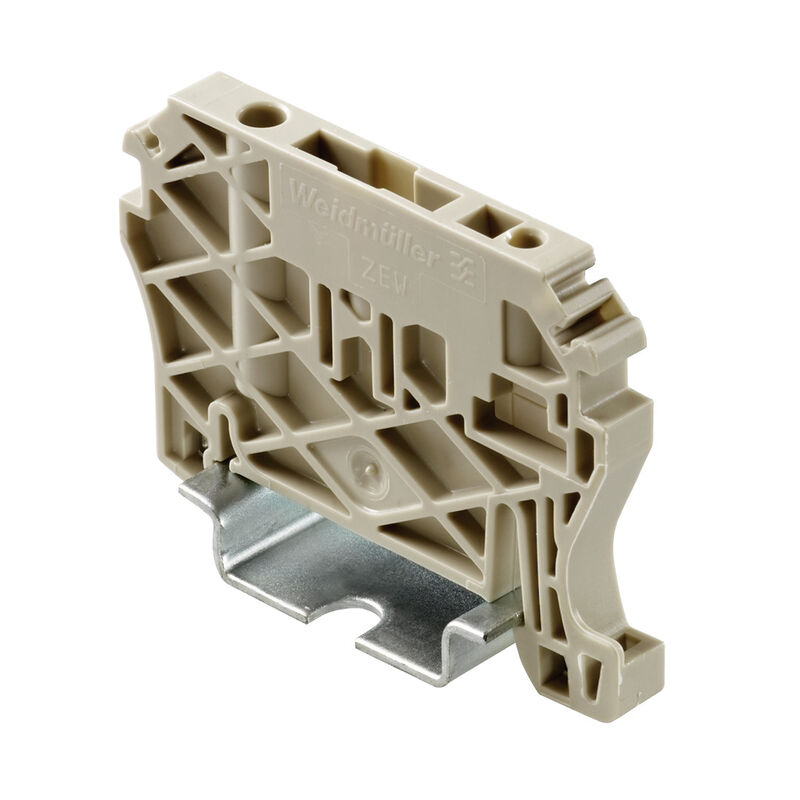

| Version | End bracket, dark beige, TS 35, V-2, Wemid, Width: 6 mm, 100 °C |
| Order No. | 9540000000 |
| Type | ZEW 35 |
| GTIN (EAN) | 4008190956264 |
| Qty. | 20 items |
| Depth | 40 mm |
| Depth (inches) | 1.575 inch |
| Height | 55 mm |
| Height (inches) | 2.165 inch |
| Width | 6 mm |
| Width (inches) | 0.236 inch |
| Net weight | 6.688 g |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-2 |
| Version | For the terminals |
| Rail | TS 35 |
| Installation advice | Direct mounting |
| Interlock | screwless |
| Type of mounting | Snap-on |
| TS 35 offset | 41 mm |
| Installation advice | Direct mounting |
| Rail | TS 35 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66880) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9540000000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9540000000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=9540000000&norm=0) |
| Product Change Notification | [20210823 Technical Change ZEW 15, ZEW 35](https://mdcop.weidmueller.com/mediadelivery/asset/900_234420) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001041 |
| ETIM 7.0 | EC001041 |
| ETIM 8.0 | EC001041 |
| ETIM 9.0 | EC001041 |
| ECLASS 9.0 | 27-14-11-35 |
| ECLASS 9.1 | 27-14-11-35 |
| ECLASS 10.0 | 27-14-11-35 |
| ECLASS 11.0 | 27-14-11-35 |
| ECLASS 12.0 | 27-14-11-35 |
| ECLASS 13.0 | 27-25-03-02 |
| ECLASS 14.0 | 27-25-03-02 |
| ROHS | Conform |
