Properties

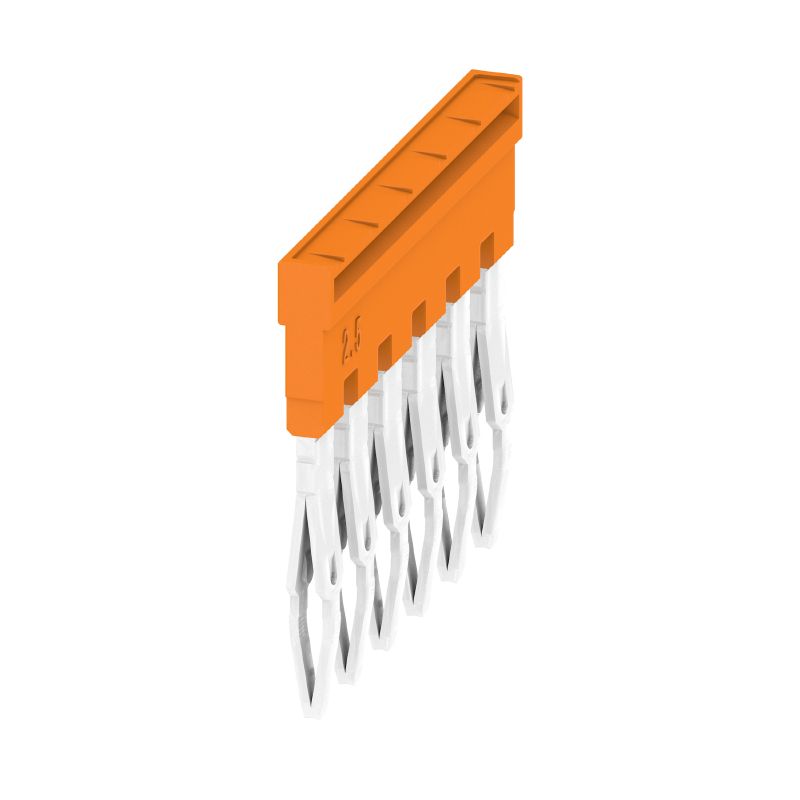

| Version | Cross-connector (terminal), Plugged, orange, 24 A, Number of poles: 6, Pitch in mm (P): 5.10, Insulated: Yes, Width: 28.3 mm |
| Order No. | 1527630000 |
| Type | ZQV 2.5N/6 |
| GTIN (EAN) | 4050118448429 |
| Qty. | 20 items |
| Depth | 24.7 mm |
| Depth (inches) | 0.972 inch |
| Height | 2.8 mm |
| Height (inches) | 0.11 inch |
| Width | 28.3 mm |
| Width (inches) | 1.114 inch |
| Net weight | 3.46 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | orange |
| UL 94 flammability rating | V-0 |
| Explosion-tested version | Yes |
| Type of fixing | Plugged |
| Type of mounting | Direct mounting |
| Pitch in mm (P) | 5.1 mm |
| Number of poles | 6 |
| Rated voltage | 400 V |
| Rated current | 24 A |
| Product information | Due to stability and temperature reasons It is only possible to break out 60% of contact elements The usage of cross connectors reduces the rated voltage to 400VThe voltage reduced to 25V if cut cross connection with blank cut edges are used |
