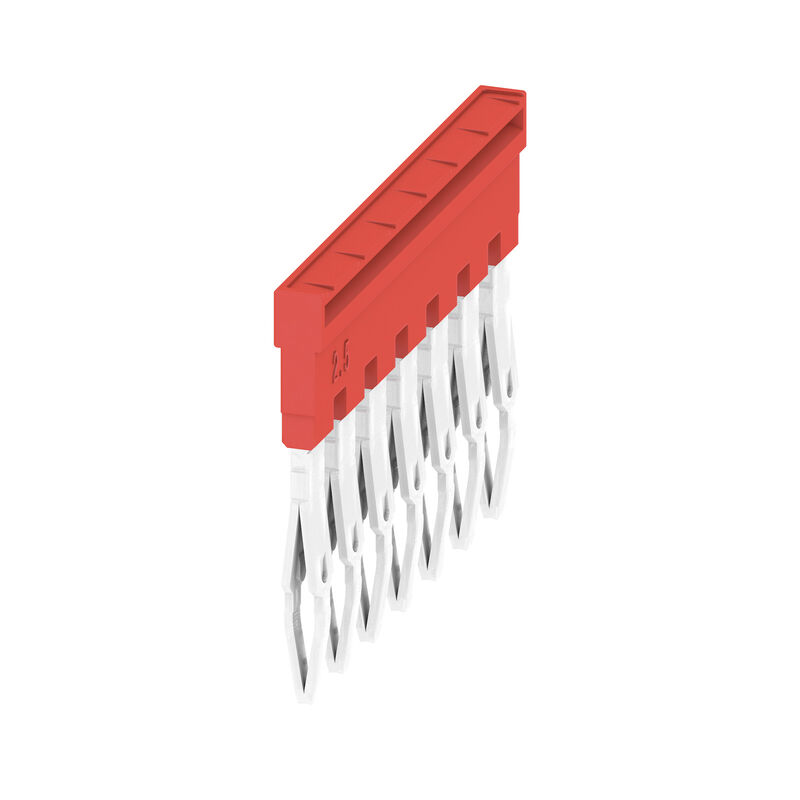

ZQV 2.5N/7 RD — Product image

Download data sheet Related products

ZQV 2.5N/7 RD

Cross-connector (terminal), Plugged, red, 24 A, Number of poles: 7, Pitch in mm (P): 5.10, Insulated: Yes, Width: 33.4 mm

Item No. 2108810000

Properties

General ordering data

Version	Cross-connector (terminal), Plugged, red, 24 A, Number of poles: 7, Pitch in mm (P): 5.10, Insulated: Yes, Width: 33.4 mm
Order No.	2108810000
Type	ZQV 2.5N/7 RD
GTIN (EAN)	4050118448498
Qty.	20 items

Dimensions and weights

Depth	24.7 mm
Depth (inches)	0.972 inch
Height	2.8 mm
Height (inches)	0.11 inch
Width	33.4 mm
Width (inches)	1.315 inch
Net weight	4.05 g

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material	Wemid
Colour	red
UL 94 flammability rating	V-0

Additional technical data

Explosion-tested version	Yes
Type of fixing	Plugged
Type of mounting	Direct mounting

Pitch in mm (P)

5.1 mm

Number of poles

7

Rated voltage	400 V
Rated current	24 A

Product information

Due to stability and temperature reasons It is only possible to break out 60% of contact elements The usage of cross connectors reduces the rated voltage to 400VThe voltage reduced to 25V if cut cross connection with blank cut edges are used

Approval/Certificate/Document of Conformity	[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_45479)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2108810000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2108810000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2108810000&norm=0)
User Documentation	[2434520000_BED-ANL.ZQV_A_REIHE.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_35337) [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [User Manual ZQV 2.5](https://mdcop.weidmueller.com/mediadelivery/asset/900_229217)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000489
ETIM 7.0	EC000489
ETIM 8.0	EC000489
ETIM 9.0	EC000489
ECLASS 9.0	27-14-11-40
ECLASS 9.1	27-14-11-40
ECLASS 10.0	27-14-11-40
ECLASS 11.0	27-14-11-40
ECLASS 12.0	27-14-11-40
ECLASS 13.0	27-25-03-03
ECLASS 14.0	27-25-03-03

ROHS

Conform
