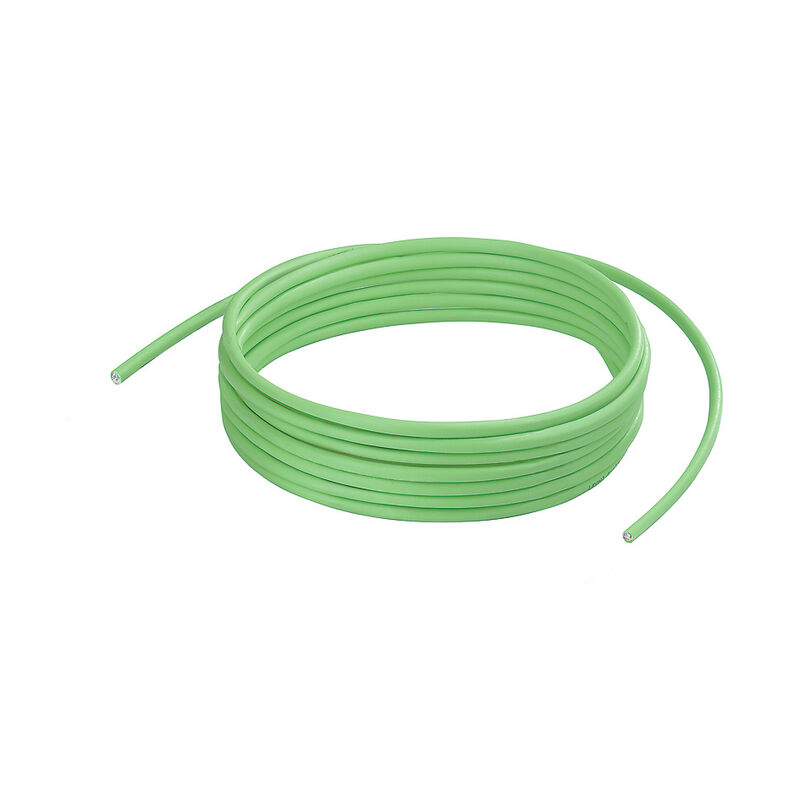

IE-C7BS8VG-500

Installation cable, Cat.7 (ISO/IEC 11801), PVC, 500 m

Product ID 2763540000
Gegevensblad downloaden Product Downloads
Verwante producten 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Technical specifications for cable Cable specific standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Installation cable, Cat.7 (ISO/IEC 11801), PVC, 500 m
Order No.
2763540000
Type
IE-C7BS8VG-500
GTIN (EAN)
4064675031031
Qty.
1  items

Dimensions and weights

Length
500  m
Length (inches)
19.685,039  inch
Net weight
18.500  g

Temperatures

Storage temperature
-40 °C...75 °C
Operating temperature
-40 °C...75 °C
Installation temperature
0 °C...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical specifications for cable

Insulation
PE
Number of poles
8
Number of wires
8
Resistance to spread of flame
in accordance with IEC 60332-1
Sheathing colour
green (RAL 6018)
Test voltage: wire-wire-shield
700 V AC

Cable specific standards

Corrosiveness of fumes
to IEC 60754-2
Generic communication cable facilities
EN 50173-1:2007
ISO / IEC 11801:2002

Standards

Corrosiveness of fumes
to IEC 60754-2
Generic communication cable facilities
EN 50173-1:2007
ISO / IEC 11801:2002

Cable structure

Arrangement of wire cores
Twisted pair
Colour sequence or wires - wire pairs
white - blue, white - orange, white - green, white - brown
Complete shielding
Shielding braid made from copper wiring
Cross-section
4*2*AWG 23/1 - 4*2*0.255 mm²
Insulation
PE
Insulation cross-section
1,4  mm
Material sheath
PVC
Number of wires
8
Sheath diameter, max.
8  mm
Sheath diameter, min.
7,6  mm
Sheathing colour
green (RAL 6018)
Sheathing material thickness
0,8  mm
Shielding
S/FTP
Shielding braid thickness
0,1  mm
Standard designations
IE-7IC4x2xAWG23/1-PVC 02YSCY PIMF
S/FTP
Strands
1
Wire material
Non-insulated copper wire
Wire pair shielding
Aluminium foil

Electrical properties of cable

Capacity at 1 kHz
45  nF/km
Category
Cat.7 (ISO/IEC 11801)
Characteristic impedance
100 ± 5 Ω at 100MHz
Delay skew
5  ns/100m
Loop resistance
150  Ω/km
Shield attenuation
85 dB at 600 Mhz
Signal propagation time
4,25  ns/m
Test voltage: wire-wire-shield
700 V AC
Transfer impedance
6 mΩ/m at 1 MHz
3 mΩ/m at 10 MHz
3 mΩ/m at 30 MHz

Mechanical and material properties of cable

Abrasion resistance
good
Colour
green
Corrosiveness of fumes
to IEC 60754-2
Min. bending radius, once only
4 x cable diameter
Min. bending radius, repetitive
8 x cable diameter
Pulling force
120 N
Resistance to spread of flame
in accordance with IEC 60332-1
Silicone-free
Yes
UV-resistant
Yes

Classifications

ETIM 6.0
EC000830
ETIM 7.0
EC003249
ETIM 8.0
EC003249
ETIM 9.0
EC003249
ETIM 10.0
EC003249
ECLASS 9.0
27-06-18-05
ECLASS 9.1
27-06-90-90
ECLASS 10.0
27-06-18-01
ECLASS 11.0
27-06-18-01
ECLASS 12.0
27-06-18-01
ECLASS 13.0
27-06-18-01
ECLASS 14.0
27-06-18-01
ECLASS 15.0
27-06-18-01
