MPC 17/25/10 TRSP
Similar to illustration
Abbildung ähnlich
MPC 17/25/10 TRSP

MPC 17/25/10 TRSP

MPC (polycarbonate empty enclosure), Empty enclosure, Height: 175 mm, Width: 250 mm, Depth: 100 mm, Basic material: Polycarbonate, untreated, Light Grey, Transparent

Product ID 9535480000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 12 Verwante producten 2
Tanúsítványok General ordering data Dimensions and weights Températures Environmental Product Compliance Cable glands, right Cable glands, top/bottom 인클로저 인증 번호 Caractéristiques générales Wyposażenie poziome Bestyckning vertikal Classifications

Tanúsítványok

ROHS
Conforme

General ordering data

Version
MPC (polycarbonate empty enclosure), Empty enclosure, Height: 175 mm, Width: 250 mm, Depth: 100 mm, Basic material: Polycarbonate, untreated, Light Grey, Transparent
Order No.
9535480000
Type
MPC 17/25/10 TRSP
GTIN (EAN)
4032248016839
Ilość
1 items

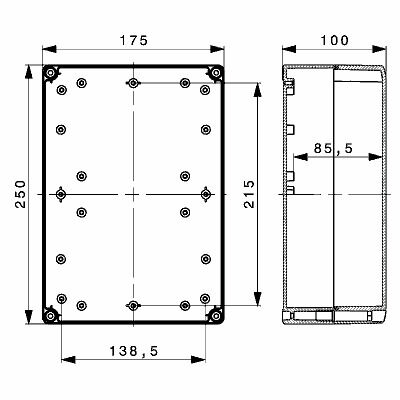

Dimensions and weights

Depth
100 mm
Depth (inches)
3,937 inch
Height
175 mm
Height (inches)
6,89 inch
Width
250 mm
Larghezza (pollici)
9,842 inch
Net weight
742 g

Températures

Operating temperature
-50 °C...130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Nincs 0,1 tömeg% feletti SVHC

Cable glands, right

M12
9
M16
7
M20
6

Cable glands, top/bottom

M12
6
M16
4
M20
4

인클로저 인증 번호

Declaration of Conformatiy No. (DoC LVD)
DoC DE PS2420 201008 001ISS00

Caractéristiques générales

Access opening: width
246,5 mm
Areas of use
Tecnica degli edifici
Sistema dei trasporti
Industria degli imballaggi
Settore meccanico
Basic material
PC
Enclosure attachment
Отверстия 4,5 мм
Flange plate
No
Impact resistance
IK08
Installation advice
Screw mounting
Integral fixing
thanks to self-tapping screws
Lid
Yes
Lid attachment
4 polyamide crosshead screws
Material thickness
3,5 mm
Number of lid screws
4
Operating temperature, max.
130 °C
Operating temperature, min.
-50 °C
Protection degree
IP66
IP67
Seal material
Polyuretan
Surface finish
neošetřené
Torque for lid screws
0,8 Nm
Zugangsöffnung Höhe
171,5 mm

Wyposażenie poziome

WDU 10 / ZDU 10
1x19
WDU 16 / ZDU 16
1x9
WDU 2,5 / ZDU 2,5 / IDU 2,5
1x37
WDU 35 / ZDU 35
1x7
WDU 4 / ZDU 4
1x31
WDU 6 / ZDU 6
1x23

Bestyckning vertikal

WDU 10 / ZDU 10
1x19
WDU 16 / ZDU 16
1x15
WDU 2,5 / ZDU 2,5 / IDU 2,5
1x37
WDU 35 / ZDU 35
1x11
WDU 4 / ZDU 4
1x31
WDU 6 / ZDU 6
1x23

Classifications

ETIM 8.0
EC000261
ETIM 9.0
EC000261
ETIM 10.0
EC000261
ECLASS 14.0
27-18-01-01
ECLASS 15.0
27-18-01-01
