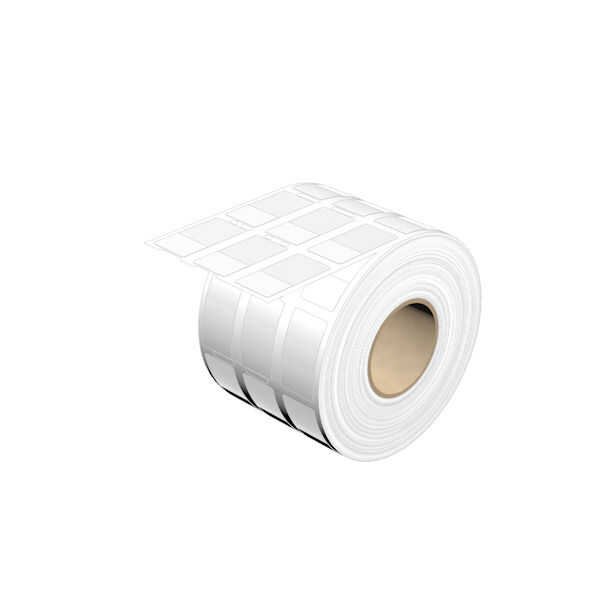

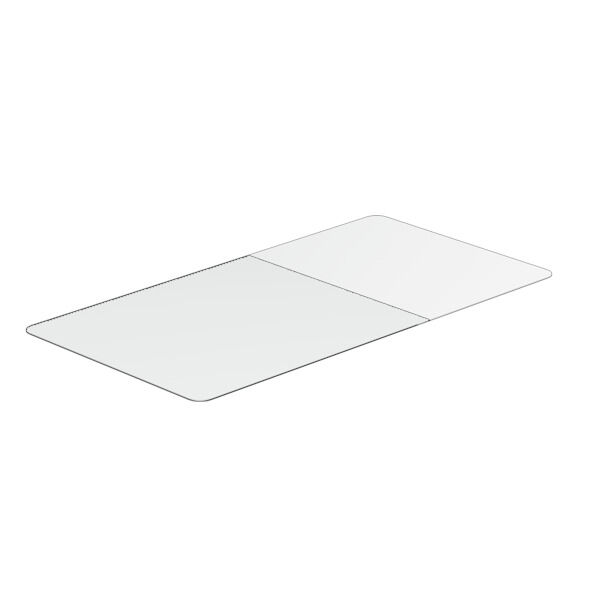

THM WO 17.8/34 WS
THM WO 17.8/34 WS

THM WO 17.8/34 WS

THM, Conductor and cable markers, 4.4 - 6.7 mm, 17.8 x 33.9 mm, white

Produkt ID 1774380000
Download datablad Engineering-support Produktdownloads
Tilbehør 1 Anvendte produkter 26
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
THM, Conductor and cable markers, 4.4 - 6.7 mm, 17.8 x 33.9 mm, white
Order No.
1774380000
Type
THM WO 17.8/34 WS
GTIN (EAN)
4032248148561
Qty.
1 Styk

Dimensions and weights

Depth
0,025 mm
Depth (inches)
0,001 inch
Height
17,8 mm
Height (inches)
0,701 inch
Width
33,9 mm
Width (inches)
1,335 inch
Net weight
388 g

Temperatures

Operating temperature range
-40...150 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Adhesive
Polyacrylate adhesive
Antal per rulle
3000
Basic material
Polyester film
Color
white
Dimensioni del campo di siglatura
13 x 17.8 mm
Halogen
No
Jelölők száma kombinációnként
  • Form of supply:
    Label reel
Kompatybilna drukarka
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
Material colour according to resistance code
9
Operating temperature range, max.
150 °C
Operating temperature range, min.
-40 °C
plage de température d'utilisation
-40...150 °C
Printed characters
without
Type of printing
neutral
UL 94 flammability rating
V-0
UL 969에 따른 인증
Yes
Version
Self-adhesive
Width
33,9 mm
Количество маркировочных элементов на комбинацию
1 Label reel = Conductor and cable markers

Conductor and cable markers

Conductor cross-section, max.
35 mm²
Conductor cross-section, min.
0,75 mm²
Conductor O.D.
4.4 - 6.7 mm
Conductor O.D., max.
6,7 mm
Conductor O.D., min.
4,4 mm
Cross-section for connected wire
0.75 - 35 mm²
Halogen
No
Text field width
13 mm
Výška textového pole
17,8 mm

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
