RSM-16DI 24VDC S
RSM-16DI 24VDC S

RSM-16DI 24VDC S

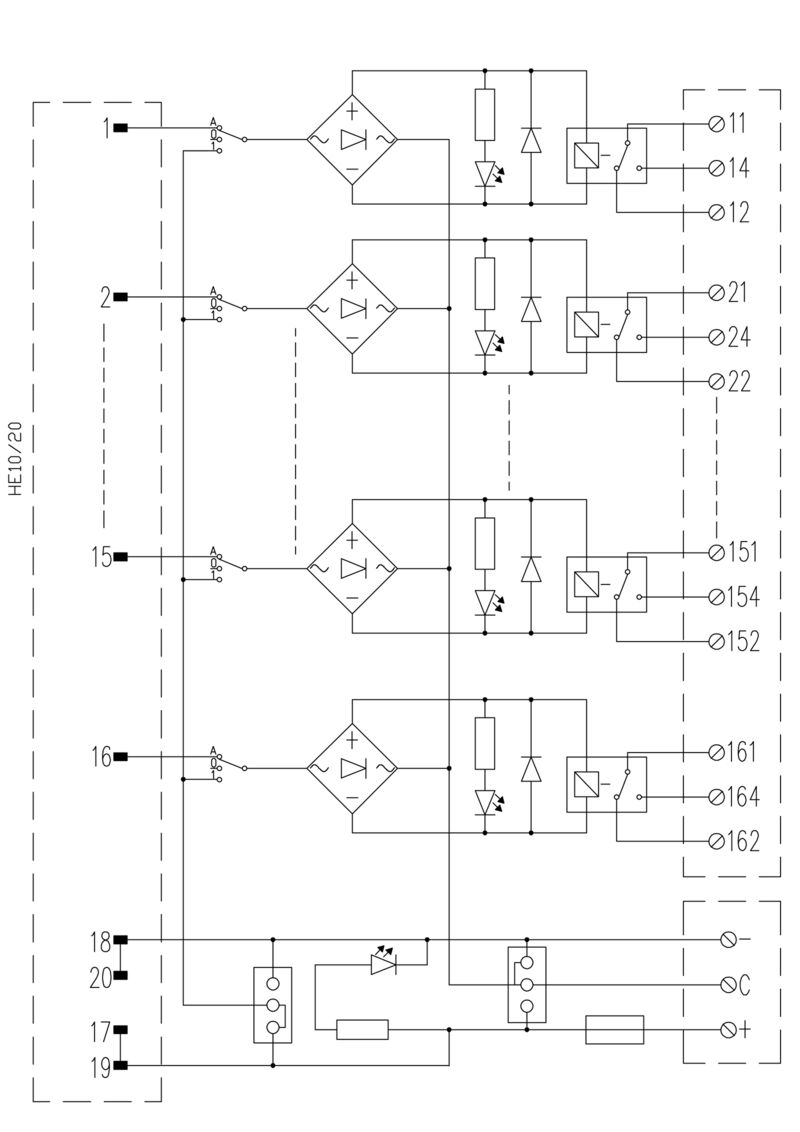

Interface, RSM, Optos, LED

Tuotteen tunnus 1312000000
Lataa tietosivu Mühendislik desteği Ürün İndirmleri
İlgili ürünler 3
Approvals 일반 주문 데이터 Dimensions and weights Hőmérsékletek Termékek környezetvédelmi megfelelősége General data Údaje o připojení Rating data Ratings data input Caractéristiques nominales sortie Insulation coordinates (EN50178) Připojovací pole Collegamento alimentazione Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

일반 주문 데이터

Version
Interface, RSM, Optos, LED
Order No.
1312000000
Type
RSM-16DI 24VDC S
GTIN (EAN)
4050118114447
Množství
1 adet

Dimensions and weights

Depth
72 mm
Depth (inches)
2,835 inch
Height
109 mm
Height (inches)
4,291 inch
Width
124 mm
Width (inches)
4,882 inch
Net weight
343,24 g

Hőmérsékletek

Storage temperature
-20...70 °C
Operating temperature
-20...50 °C

Termékek környezetvédelmi megfelelősége

RoHS Compliance Status
Megfelel, kivétellel
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
71d9bdc4-a0b5-4af0-93bd-2ad4e523fb14

General data

LED status display per relay
green
LED status of the supply voltage
yellow
Power supply fuse
2 A

Údaje o připojení

Connection on control side
Zásuvný konektor v souladu s IEC60603-13 / DIN41651
Number of poles (control side)
20pólová zástrčka
Wiring system
1-wire

Rating data

Mechanical service life
5 x 106 manœuvres

Ratings data input

Input voltage
24 V DC ± 10%
Input current
13 mA

Caractéristiques nominales sortie

Relay type
RSS
Material of contacts
AgNi gold flashed
Rated voltage
24 V DC ± 10%
Max. DC continuous current
0,1 A
Minimum contact current
1 mA
Minimum contact voltage
1 V

Insulation coordinates (EN50178)

Rated input insulation voltage
≤ 50 V DC
Rated output insulation voltage
≤ 50 V DC
Overvoltage category input/input
III
Overvoltage category input/output
III
Pollution severity level
2
Pulse voltage test (1,2/50μs)
1,5 kV
Insulation test voltage AC
0,35 kV
Clearance input/output
≥ 6 mm

Připojovací pole

Clamping range, max.
6 mm²
Clamping range, min.
0,13 mm²
Type of connection
Šroubové připojení

Collegamento alimentazione

Type of connection
스크류 결선
Clamping range, min.
0,13 mm²
Clamping range, max.
6 mm²

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
