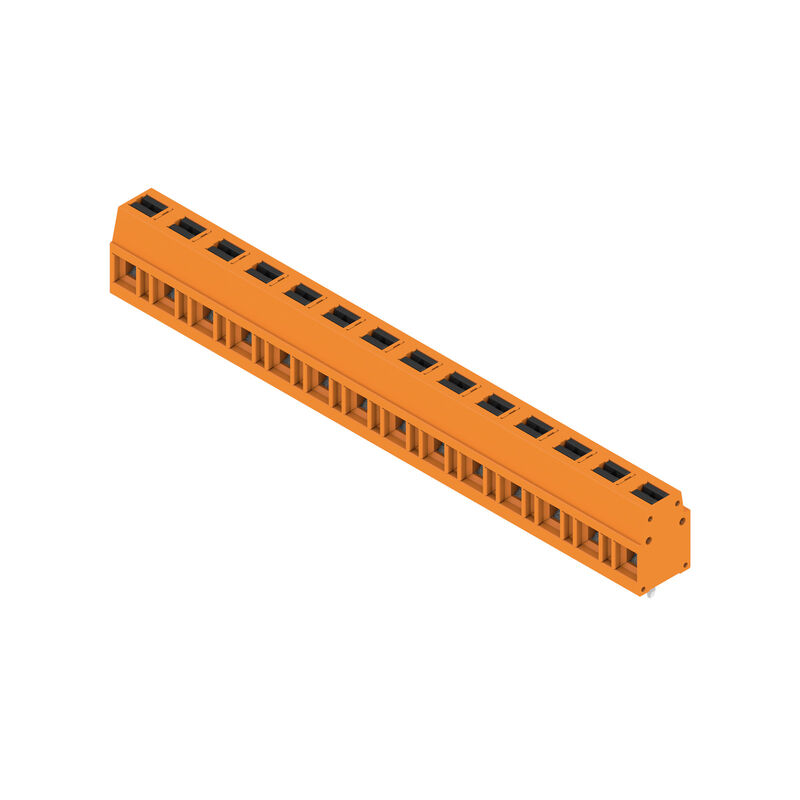

Product image
LMFV 7.50/14/90 3.5SN OR BX

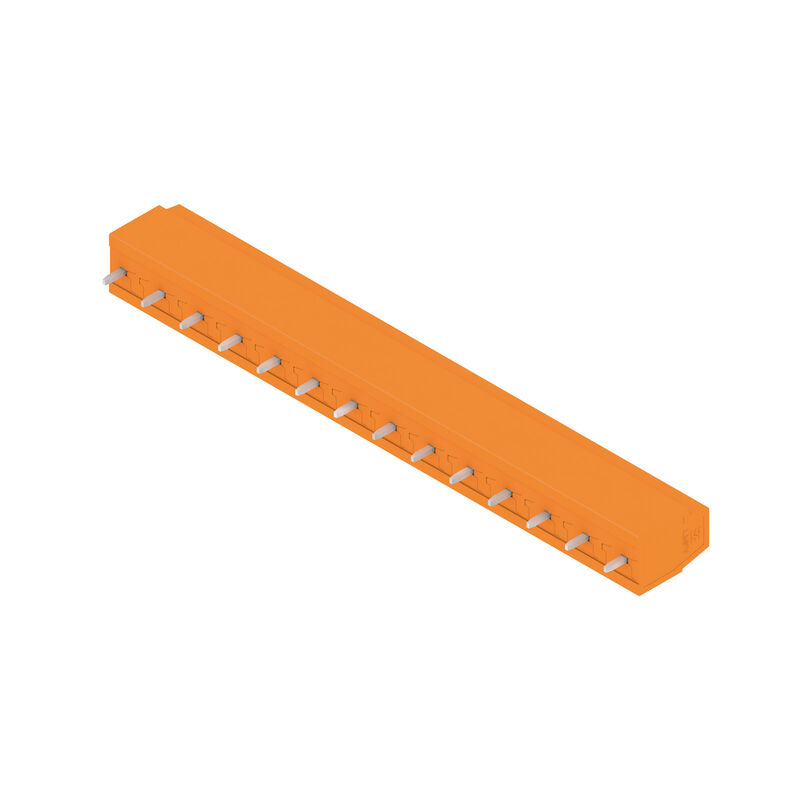

Product image
LMFV 7.50/14/90 3.5SN OR BX

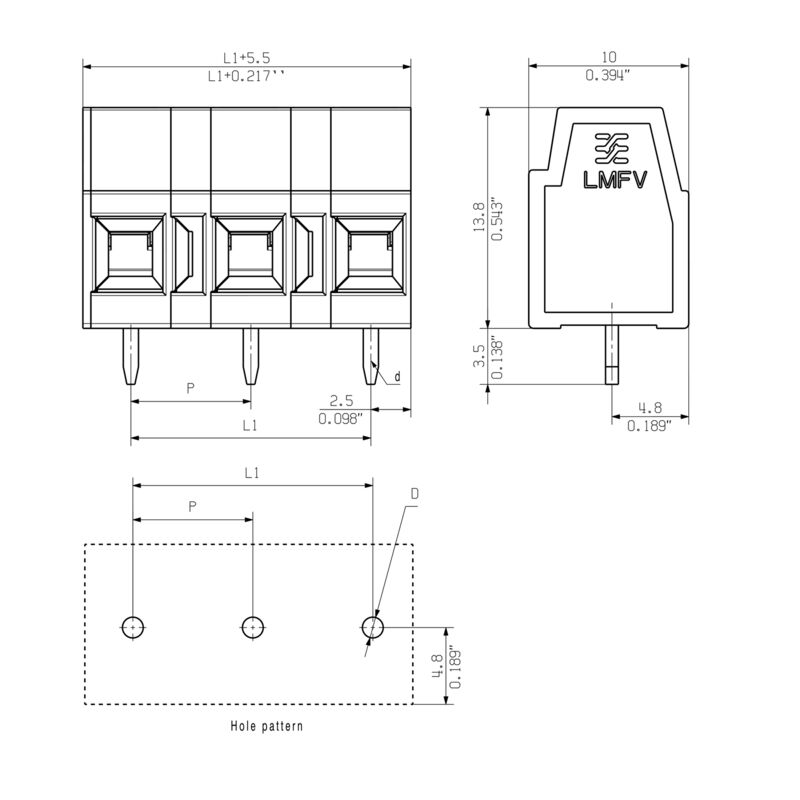

Dimensional drawing
LMFV 7.50/14/90 3.5SN OR BX

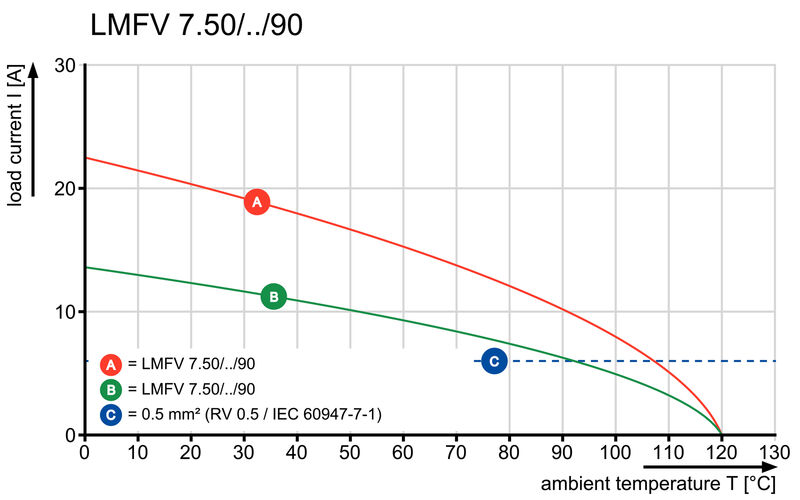

Derating curve
LMFV 7.50/14/90 3.5SN OR BX

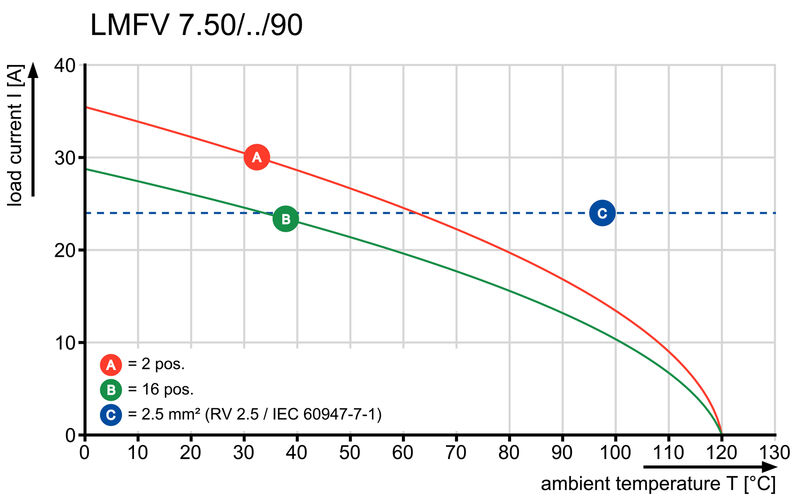

Derating curve

LMFV 7.50/14/90 3.5SN OR BX

Printed circuit board terminals, 7.50 mm, Number of poles: 14, 90°, Solder pin length (l): 3.5 mm, tinned, orange, PUSH IN with actuator, Clamping range, max. : 2.5 mm², Box

Item No. 2787690000
Download data sheet Engineering Support Product Downloads
Related products 30
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
Printed circuit board terminals, 7.50 mm, Number of poles: 14, 90°, Solder pin length (l): 3.5 mm, tinned, orange, PUSH IN with actuator, Clamping range, max. : 2.5 mm², Box
Order No.
2787690000
Type
LMFV 7.50/14/90 3.5SN OR BX
GTIN (EAN)
4064675065531
Qty.
36  items
Product data
IEC: 630 V / 24 A / 0.2 - 2.5 mm²
UL: 300 V / 15 A / AWG 24 - AWG 14
Packaging
Box

Dimensions and weights

Depth
10  mm
Depth (inches)
0.394  inch
Height
17.3  mm
Height (inches)
0.681  inch
Width
103  mm
Width (inches)
4.055  inch
Net weight
22.4  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Product family
OMNIMATE Signal - series LMF
Wire connection method
PUSH IN with actuator
Mounting onto the PCB
THT solder connection
Conductor outlet direction
90°
Pitch in mm (P)
7.5  mm
Pitch in inches (P)
0.295  "
Number of poles
14
Pin series quantity
1
Number of rows
1
Solder pin length (l)
3.5  mm
Solder pin dimensions
0.95 x 0.8 mm
Screwdriver blade
0.6 x 3.5
Stripping length
8  mm
Stripping length tolerance
  • min.:
    -1 mm
  • max.:
    0 mm
L1 in mm
97.5  mm
L1 in inches
3.84  "
Touch-safe protection acc. to DIN VDE 0470
IP 20
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Protection degree
IP20

Material data

Insulating material
PA
Colour
orange
Colour chart (similar)
RAL 2000
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Coating
4-8 μm SN
Layer structure of solder connection
4...8 µm Sn matt
Storage temperature, min.
-40  °C
Storage temperature, max.
70  °C
Operating temperature, min.
-40  °C
Operating temperature, max.
115  °C

Conductors suitable for connection

Clamping range, min.
0.2  mm²
Clamping range, max.
2.5  mm²
Wire connection cross section AWG, min.
AWG 24
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0.2  mm²
Solid, max. H05(07) V-U
2.5  mm²
Flexible, min. H05(07) V-K
0.2  mm²
Flexible, max. H05(07) V-K
2.5  mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0.25  mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1.5  mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0.2  mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1.5  mm²
Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

Rated current, min. number of poles (Tu=20°C)
24  A
Rated current, max. number of poles (Tu=20°C)
22.8  A
Rated current, min. number of poles (Tu=40°C)
24  A
Rated current, max. number of poles (Tu=40°C)
22.8  A
Rated voltage for surge voltage class / pollution degree II/2
630  V
Rated voltage for surge voltage class / pollution degree III/2
350  V
Rated voltage for surge voltage class / pollution degree III/3
250  V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4  kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4  kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4  kV

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300  V
Rated voltage (Use group D / UL 1059)
300  V
Rated voltage (Use group F / UL 1059)
1,000  V
Rated current (Use group B / UL 1059)
15  A
Rated current (Use group D / UL 1059)
10  A
Rated current (Use group F / UL 1059)
12  A
Wire cross-section, AWG, min.
AWG 24
Wire cross-section, AWG, max.
AWG 14
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
170  mm
VPE width
130  mm
VPE height
50  mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • The test point can only be used as potential-pickup point.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
